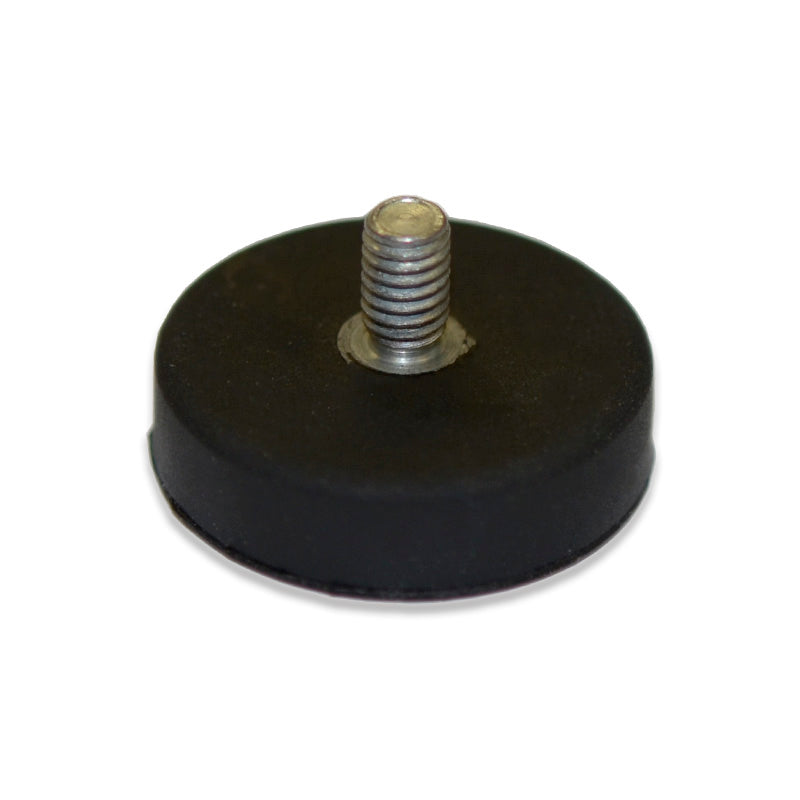

Male Thread Neodymium Pot - Diameter 22mm x 6mm with 6mm M4 thread and Rubber Case
Product code: RCND22M
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description
With Neodymium magnetic core, this product has a strong pull force of 5kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 22mm, a 6mm thickness, 6mm high M4 male threaded and external boss. The product is identified by AMF Part Number RCND22M.
Uses for our Male Thread Neodymium Pots with Rubber Casing:
These Male Thread Rare Earth Holding Pot magnets can be attached to other materials through a hole and secured in place with a matching M4 hexagonal nut. These high strength magnets have a mild steel cap on one side to deflect magnetic strength toward the base, giving them improved holding ability and are then encapsulated in a durable rubber coating that protects delicate surfaces or painted finishes from damage. Rubber Coated Pot magnets provide resistance to moisture and also resist sideways forces that can cause the magnet to slip or dislodge in certain applications.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
