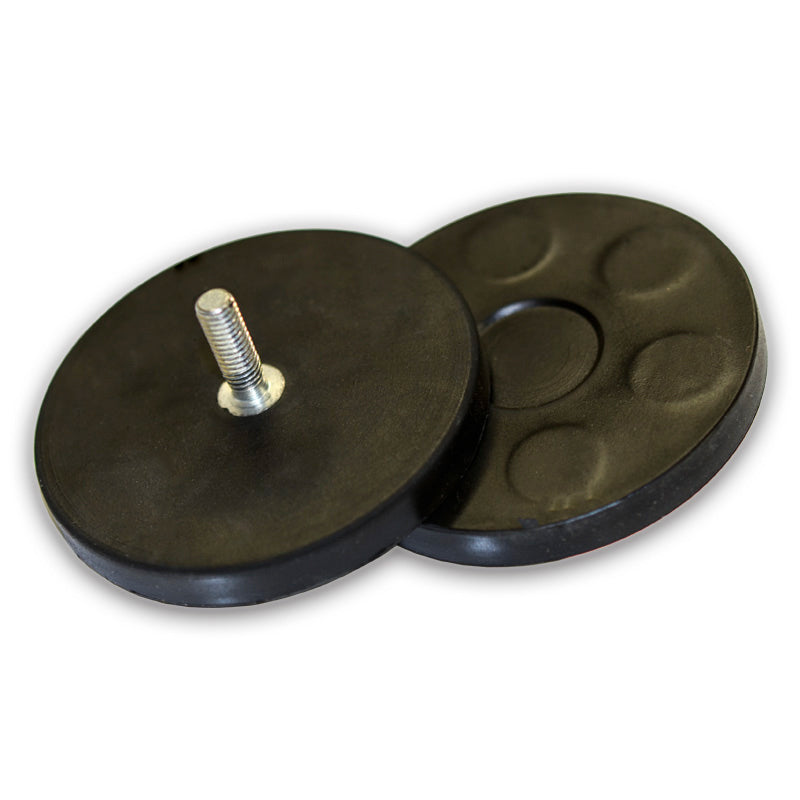

Male Thread Neodymium Pot - Diameter 66mm x 8mm with 15mm Boss and Rubber Case
Product code: RCND66M
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description
With Neodymium magnetic core, this product has a strong pull force of 18kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 66mm, a 8mm thickness, 15mm high M8 male threaded and external boss. The product is identified by AMF Part Number RCND66M.
Uses for our Male Thread Neodymium Pots with Rubber Casing:
Neodymium Rubber Coated Pot magnets can be placed onto the frames of metal doors and windows of buildings under construction and enable sheets of plywood or similar to be secured with a nut to the magnet. This temporary method of closure can be used on construction sites and prevents unauthorised entry and keeps out the weather. Securing building access points and openings in this manner allow glazing works to be deferred to the end of the construction project or to a more convenient time when the site is safer for these delicate materials that are easily scratched or cracked. These Pot Magnets are also popularly used in conjunction with glass and plastic materials. The rubber coating protects the glass and while magnets will not cling to glass surfaces, two of these magnets will cling to each other through the glass and can also be applied to Perspex type materials. Attached to outdoor equipment or on worksites, these magnets have a high tolerance to corrosion and to water penetration.
Our male threaded Neodymium Holding Pot magnets are ideally secured to other material with a hexagonal nut. These Neodymium magnets are capped on one side to increase holding power and then encapsulated in a durable Santoprene rubber casing that does not damage delicate surfaces.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
