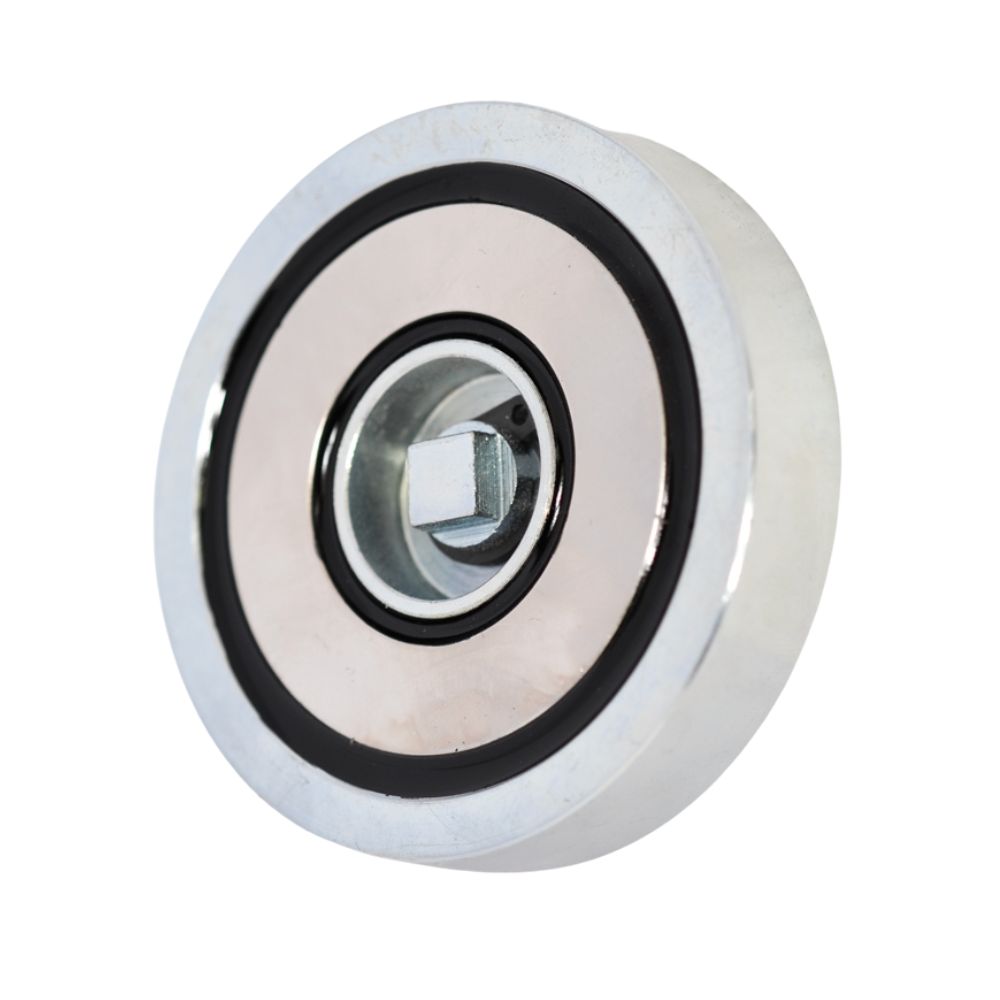

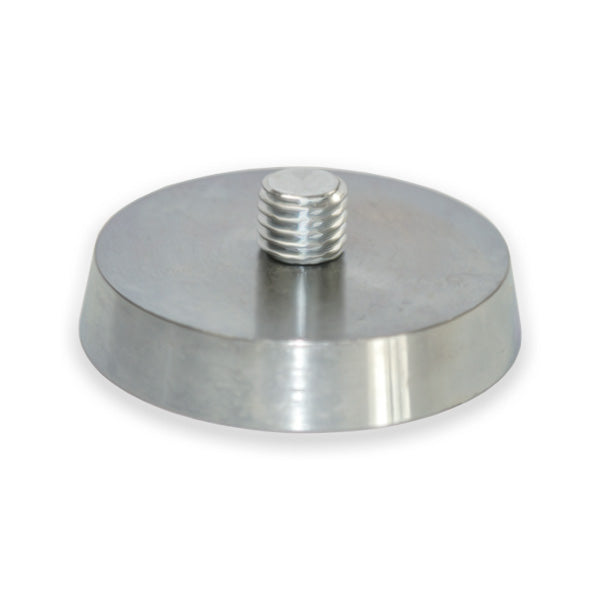

Neodymium Magnetic Fixing Plate – D60mm | M12 Thread
Product code: MFP12
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This Neodymium fixing plate has a diameter of 60mm with M12 thread and a pull force of 50kg. This product is identified by AMF Part Number MFP12.
This Neodymium Magnetic Plate is used to attach Lifting Anchors or Fixing Sockets to the steel formwork when Precast Concrete Panels are being manufactured. Precast panels are made Off-site and need to be transported by truck to the construction project. Without the lifting points and locating holes created by Magnetic Fixing Plates, the cured concrete sections would be very difficult to crane on to trucks or be secured into the correct position on site. The device contains powerful Rare Earth magnets that keep the plate in the required position on steel mouldings or forms during the casting process. Lightly oiling the outer surface of the plate will ensure its easy removal and make it reusable. Various sizes are available to suit differently sized and weighted concrete panels.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
