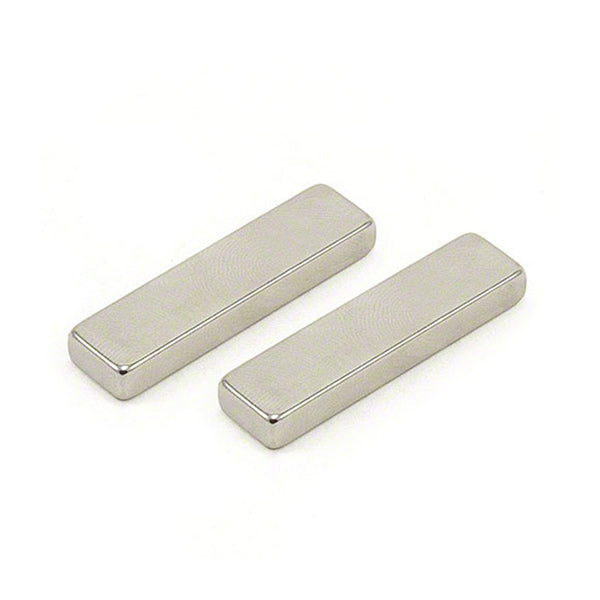

Neodymium Block - 50mm x 10mm x 6mm N45
Product code: 22005C
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This Rectangular block magnet has a length of 50mm, a width of 10mm and a height of 6mm. It has a pull force of 12.60 kgs against 5mm mild steel. This product has a Nickel coating. It is identified by AMF Part Number 22005C.
Uses for our powerful Rare Earth block magnets:
Neodymium Block magnets instinct to bond and release at a threshold pressure makes them natural safety devices or overload protection switches. These failsafe mechanisms are installed to protect machinery or products in crash stops and jams, protecting the system from serious and expensive failure. Once the excessive force event has been averted, the magnets instinct is to re-engage, to its original position, ready to intervene in anything less than ideal operating circumstances. Neodymium blocks are compatible with established and new materials, but especially in conjunction with plastics.
This is a great all-purpose rectangular magnet with added holding power from the N52 Grade which can be used when a specific amount of force is required or space for a larger magnet is not available. Applications are varied and include such things as water purification, commercial door holders and for general, engineering and industrial uses.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
