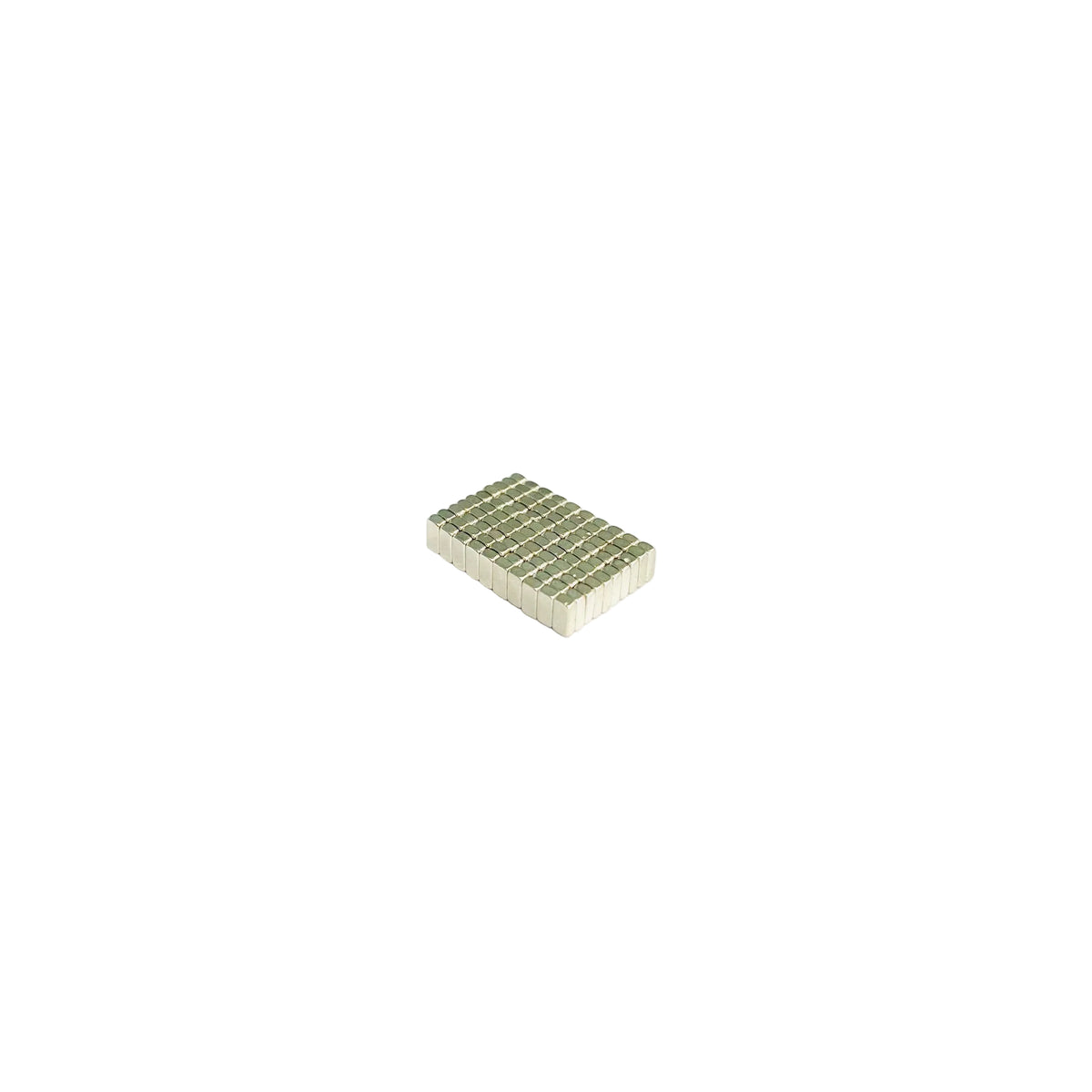

Neodymium Block Magnet - 3mm x 1mm x 1.5mm | N50

Product code: B-W1H1.5L3-N50

£0.35for 1 to 9 items
£0.30buy 10 to 99 itemsand save 14%
£0.24buy 100+ itemsand save 32%
Total
£0.35

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 3mm x 1mm x 1.5mm | N50

Product Code B-W1H1.5L3-N50
Pull Force* 0.17 kg
Weight 1 gm
Style Rare Earth Block
Gauss 6860
Grade N50
Coating Nickel (NiCuNi)
Direction of Magnetisation Through height 1.5mm
Dimensions Width:1mm, Height:1.5mm, Length:3mm
Neodymium Block Magnet - 3mm x 1mm x 1.5mm | N50

Magnetic Product Description:

AMF stocks and supplies a diverse range of Neodymium block magnets including this tiny item with a Nickel coating. It contains N50 Grade Neodymium and is axially magnetised through the 1.5mm height dimension. Pull force is rated to 0.17kg and surface gauss is 6860G.


Uses for our Rare Earth block magnets:

Neodymium block magnets like these are used in highly technical and sensitive measuring equipment such as sensors, gauges, and switches. They can play an integral part in the operation of important monitors for industrial processing equipment, commercial systems and medical devices where their permanent, self-sufficient power and accuracy are important in maintaining safe, consistent, trouble-free operations. One or more magnets can be configured in an extremely sensitive assembly where they react precisely to different levels of magnetic influences such as ferrous material or electrical signals. Highly accurate monitoring is vital for determining appropriate maintenance scheduling for industrial equipment and for keeping delicate manufacturing systems within safe operating tolerances.

Small, inconspicuous Neodymium magnets are also used in delicate, contemporary fashion accessories and jewellery designs where they provide a practical and modern alternative to traditional fastening methods. Block shaped magnets can be glued neatly inside angled frames to act as closure devices on storage containers or to attach decorative items. Miniature Neodymium magnets are strong, yet relatively inexpensive and for this reason, they appeal to creative people who build and enjoy scale models, Warhammer figures, remote control cars, boats, drones and other aircraft.

Neodymium Block Magnet - 3mm x 1mm x 1.5mm | N50 (B-W1H1.5L3-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.4-1.46 N/A
Remanence Br(kGs)
14-14.6 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
374-406 N/A
Max Energy Product(BH)max(MGOe)
47-51 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.4-1.46 N/A
Remanence Br(kGs) 14-14.6 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 374-406 N/A
Max Energy Product(BH)max(MGOe) 47-51 N/A
