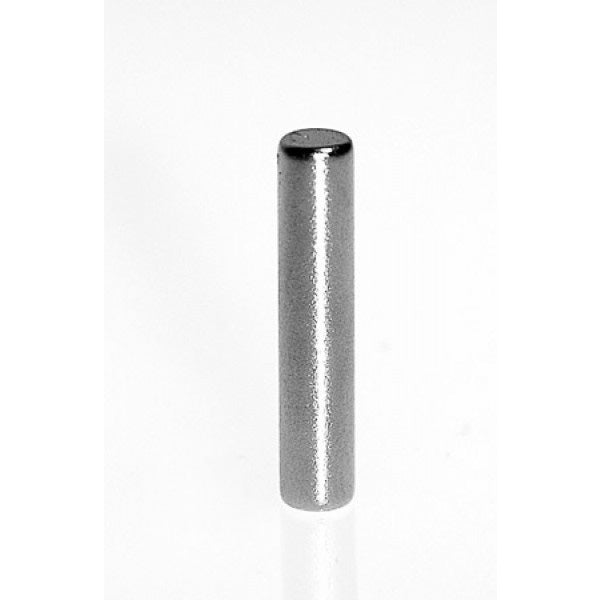

Neodymium Cylinder - 10mm x 50mm
Product code: 21022
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This rare earth cylinder magnet has a diameter of 10mm and a height of 50mm. It has a magnetic flux reading of 6567 Gauss and a pull force of 4.7 kilos. Its part number is 21022.
Uses for our rare earth cylinder magnets:
Combinations of Shape and Grade like this N42 Grade Neodymium Cylinder, for example, allow job-specific pull forces to be achieved to match a particular function. This is often required in automated industrial processes where unmanned machinery is required to pick up sheet metal blanks or other metal items for stamping, tooling or machining. Accuracy over prolonged production periods is a vital requirement in these industries and magnets of the appropriate strength and field range, like these narrow-field cylinders, are suited to small but relatively heavy metal components. Automated arms on a machine can be fitted with suitable strength magnets to repeatedly pick up these parts, and using low pneumatic pressure to break the bond, release them after their modification is completed. Permanent magnets provide secure, reliable and predictable hold in these repetitive processes and help to make these labour saving and cost-efficient automated manufacturing systems viable.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
