Neodymium Cylinder - 3mm x 4mm
Product code: 21062
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

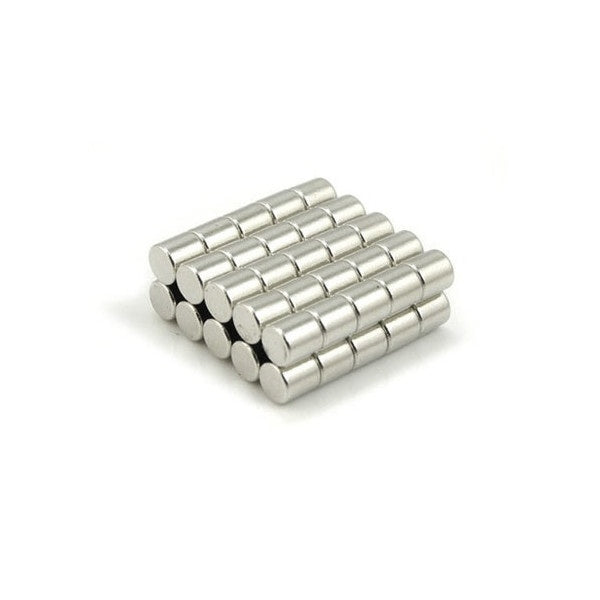

This rare earth cylinder has a diameter of 3mm and a height of 4mm. It has a magnetic flux reading of 6180 Gauss. Its part number is 21062.
Uses for our rare earth cylinder magnets:
These Cylindrical shape magnets are similar in size to Disc shaped magnets but offer more total volume which results in more pull force. Neodymium Cylinder magnets are usually suited to being recessed below the surface of another material, usually in a predrilled hole and secured with glue.N42 Grade Neodymium increases holding ability without changing the physical dimensions, in effect, upgrading its power. These small but strong magnets are found in industrial failsafe systems and warning devices that utilise their inherent deep and narrow field-type to provide consistent and accurate information regarding metal movement and deterioration. Small, strong and lightweight, magnets of this calibre can perform in a similar way to Velcro-type adhesion systems and can be a great alternative or job-specific solution for situations where buckles, clasps, laces or latches require too much dexterity for those with health challenges, or where improved efficiency, such as in competitive sport, can be the difference between winning and losing.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
