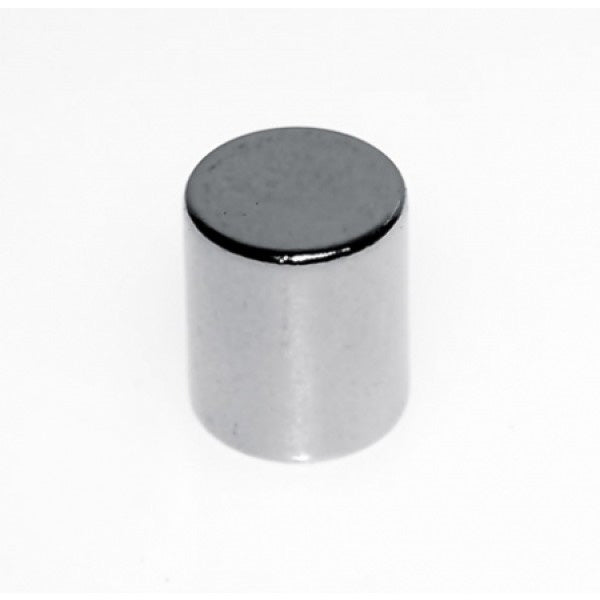

Neodymium Cylinder - 8mm x 10mm
Product code: 21034
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This magnet has an 8mm diameter and a height of 10mm. It has a flux reading of approx 5849 Gauss and a pull force of approx 2.4 kilos. It is identified by the AMF magnet part number 21034.
Uses for our rare earth cylinder magnets:
This cylinder-shaped magnet uses slightly weaker N35 Grade Neodymium material than other stock items. The relatively broad surface area at the poles, in comparison to the height, maintains good adhesion properties while also protecting the surfaces it holds together from damage or creasing. This is a handy all-purpose, non-invasive magnet which is often used for light-weight or small-sized display purposes in fields like visual arts, photography, sculpture, modelmaking and art installation to name a few. It is compact, light, strong and has endless problem-solving uses, domestically and commercially.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
