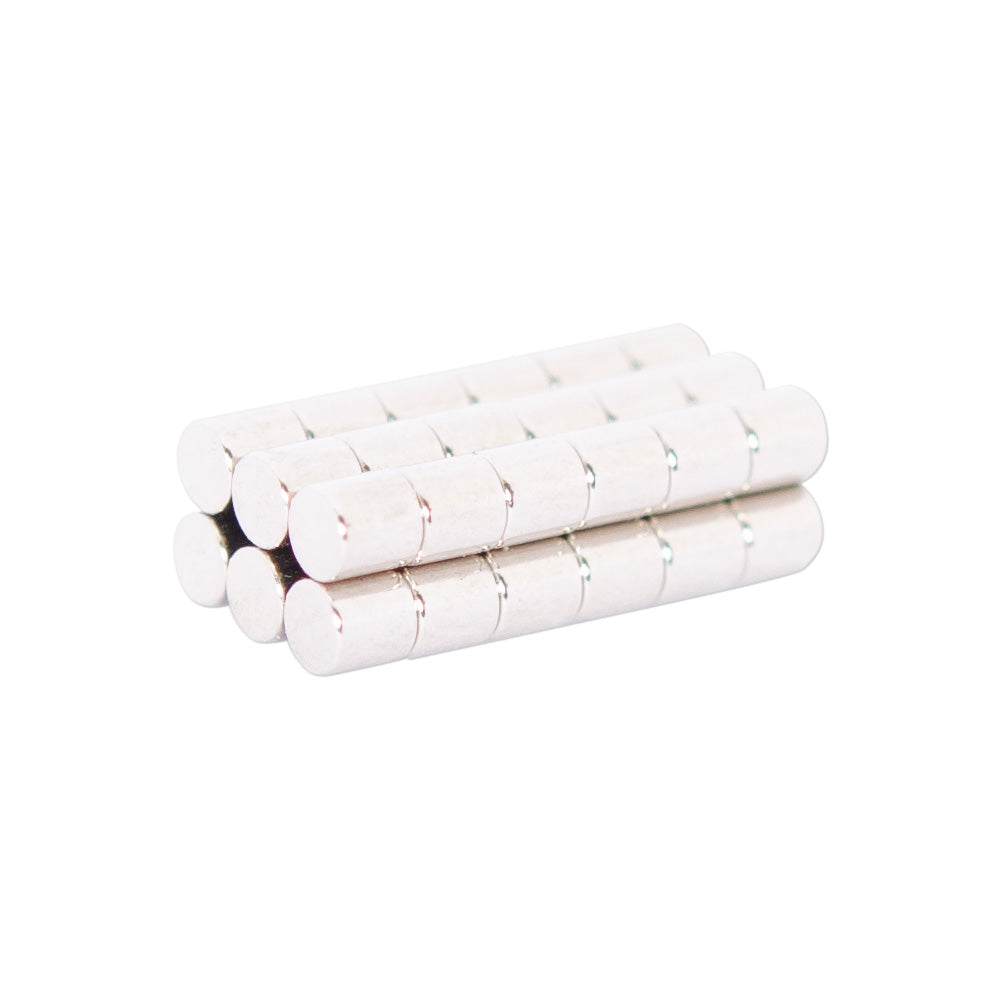

Neodymium Cylinder Magnet - 4mm x 4.75mm
Product code: 93613
Neodymium Cylinder Magnet - 4mm x 4.75mm
Magnetic Product Description:
This Rare Earth Cylinder Magnet has a diameter of 4mm and a height of 4.7mm. Made from strong neodymium magnetic material, it has a pull force of 602gr against 3 mm mild steel. It has a flux reading of 6,083 Gauss. Identified by the AMF magnet part number 93613. AMF Magnets stock a range of magnets including Rare Earth Neodymium Cylinders in a variety of sizes, dimensions and pull strengths. For other Rare Earth magnetic products see our Rare Earth range
Uses for our rare earth cylinder magnets:
Â
Neodymium Cylinder Magnet - 4mm x 4.75mm (93613)
| Grade | |
|---|---|
| N38 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.23-1.3 | N/A |
| Remanence Br(kGs) | |
| 12.3-13 | N/A |
| Coercivity bHc(kA/m) | |
| >=859 | N/A |
| Coercivity bHc(Oe) | |
| >=10.8 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 286-318 | N/A |
| Max Energy Product(BH)max(MGOe) | |
| 36-40 | N/A |
| Grade | N38 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.23-1.3 | N/A |
| Remanence Br(kGs) | 12.3-13 | N/A |
| Coercivity bHc(kA/m) | >=859 | N/A |
| Coercivity bHc(Oe) | >=10.8 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=955 | N/A |
| Intrinsic Coercivity iHc(Oe) | >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | 286-318 | N/A |
| Max Energy Product(BH)max(MGOe) | 36-40 | N/A |
