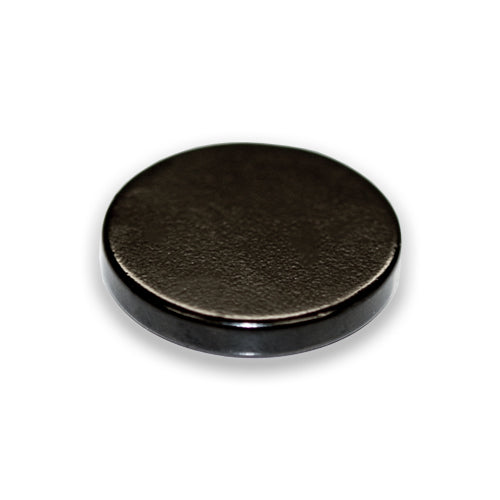

Neodymium Disc - 20mm x 3mm N42 (Epoxy)
Product code: 20018A
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This rare earth disc has a diameter of 20mm and a height of 3mm. It has a magnetic flux reading of 1810 Gauss and a pull force of 4.3kg. It is identified by the AMF magnet part number 20018A.
Uses for our rare earth disc magnets:
The Epoxy Coating prevents damage to both the Neodymium Disc it encloses as well as the surface it is attached to. This coating also protects the magnet and the surface it is attached to from corrosion or magnetic degradation that results from exposure to the weather. They can be used to bond other plastic material and disguise their presence and invoke a sense of mystery or magical power. These coated disc magnets are a very practical choice for outdoor use.
The N42 Grade of magnetism compensates for the diminished adhesive power caused by the coatings physical interference between two surfaces.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
