Neodymium Disc - 9.5mm x 6.3mm | NiCuNi Teflon Coated N42 SH
Product code: 20059T
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

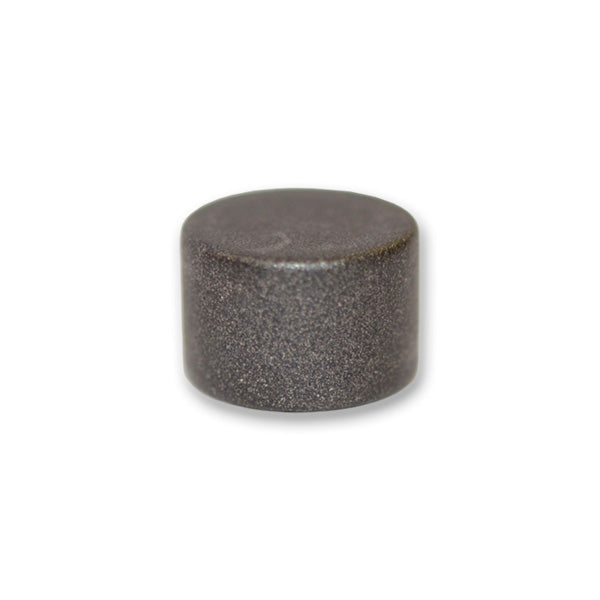

This NiCuNi Teflon coated Rare Earth Disc has a diameter of 9.5mm and a height of 6.3mm. It has a pull force of 3.1 kilos and is identified by AMF magnet part number 20059T.
Uses for our NiCuNi Teflon coated Disc Magnets:
Teflon is a coating that is to a large extent inert and does not contaminate materials such as liquids when immersed in them. Teflon coated magnets are therefore commonly used in medical laboratories and for remote chemical stirring when sterile conditions need to be maintained. Teflon coatings also prevent the magnet from chipping or cracking and offer long-lasting protection from corrosive weather conditions and oxidisation. The stronger than standard N42 Grade of this coated Neodymium magnet also helps to negate any loss of pull force created by the Teflon gap between surfaces and extends its safe operating temperature limits.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
