Neodymium Magnetic Fixing Plate – D60mm | M20 Thread
Product code: MFP20
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

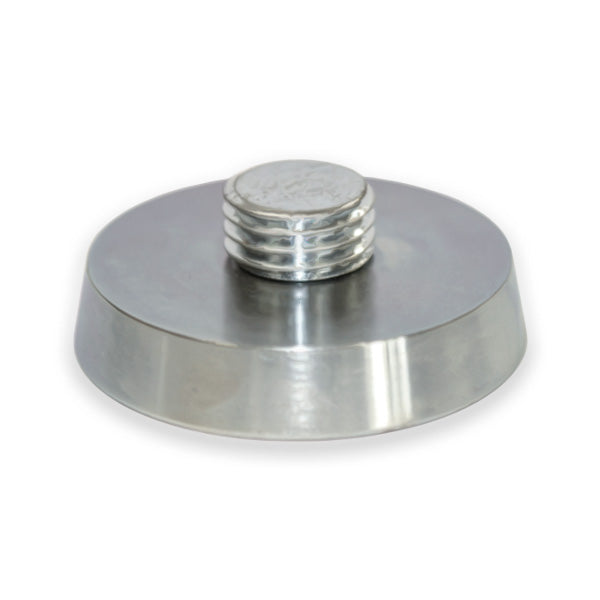

It has a diameter of 60mm with M20 thread, a pull force of 50kg and is identified by AMF Part Number MFP20.
Uses for our Magnetic Fixing Plates:
This Neodymium Magnetic Plate is used to fix the Lifting Anchors and Positioning Sockets to steel formwork before Precast Concrete is poured. Once the concrete panel has completely cured these magnets can be removed, leaving convenient attachment points for chains, straps or cables. Making these attachment points with magnetic attachment is fast, safe, simple and eliminates the need for nails or screws. Applying a light coating of oil to the magnet will ensure their easy removal when the concrete dries and enables them to be reused. Various sizes are available to suit a range of concrete panels
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
