Neodymium Magnetic Fixing Plate – D74mm | M30 Thread
Product code: MFP30
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

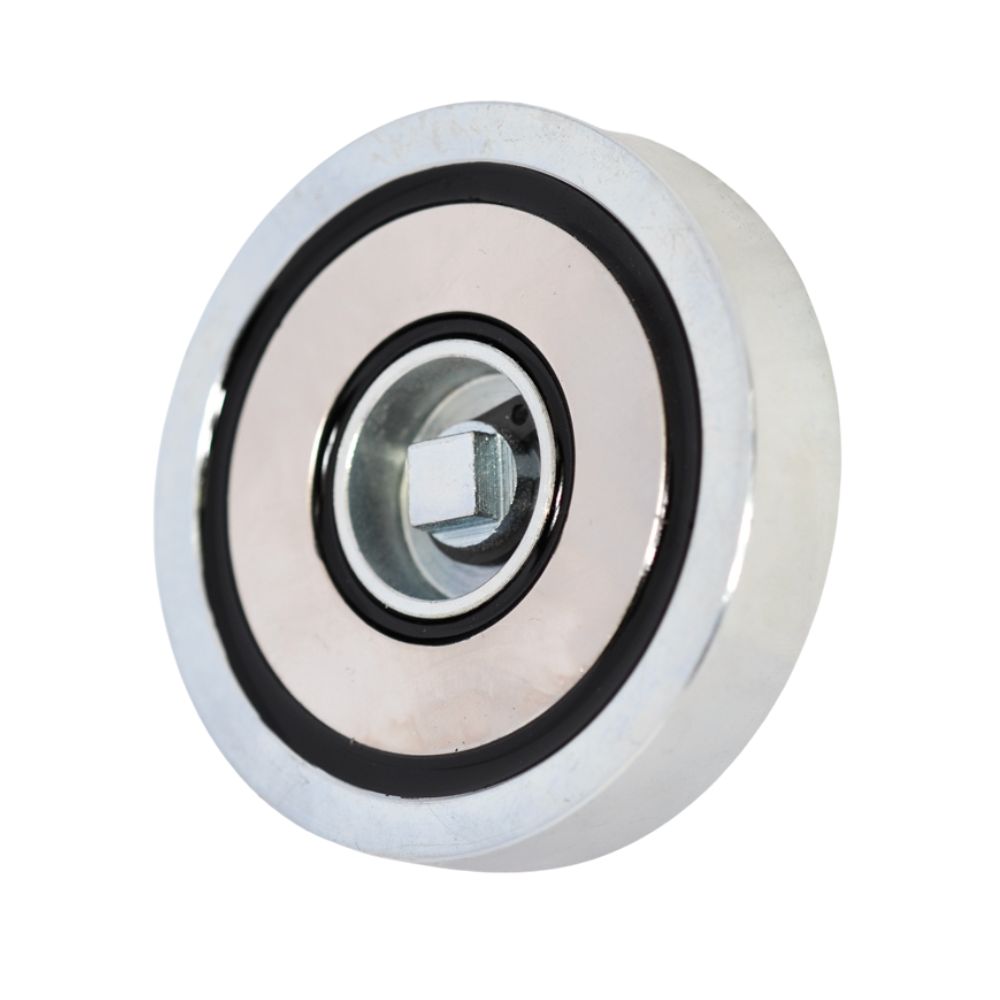

It has a diameter of 74mm with M30 thread, a pull force of 120kg and is identified by AMF Part Number MFP30.
Uses for our Magnetic Fixing Plates:
This Neodymium Magnetic Plate is used to fix the lifting anchors and positioning sockets to steel formwork before the precast concrete is poured. Steel formwork is sturdy and reusable and offers consistently uniform and high-quality castings of concrete panels. When magnets are used on the metal mouldings there is no need for nails or screws Applying a light film of oil will enable them to be easily removed and reused.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
