Male Thread Neodymium Pot - Diameter 10mm x 12mm
Product code: AMFYPC10
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

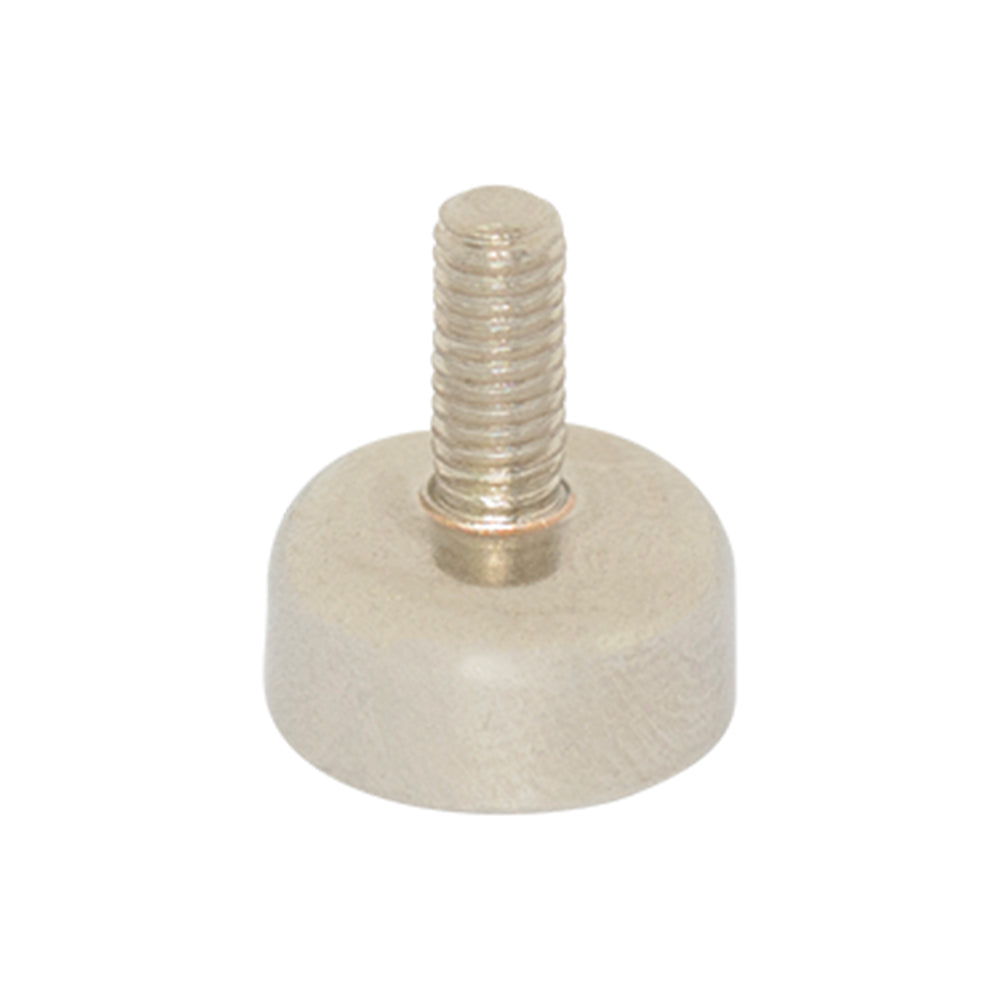

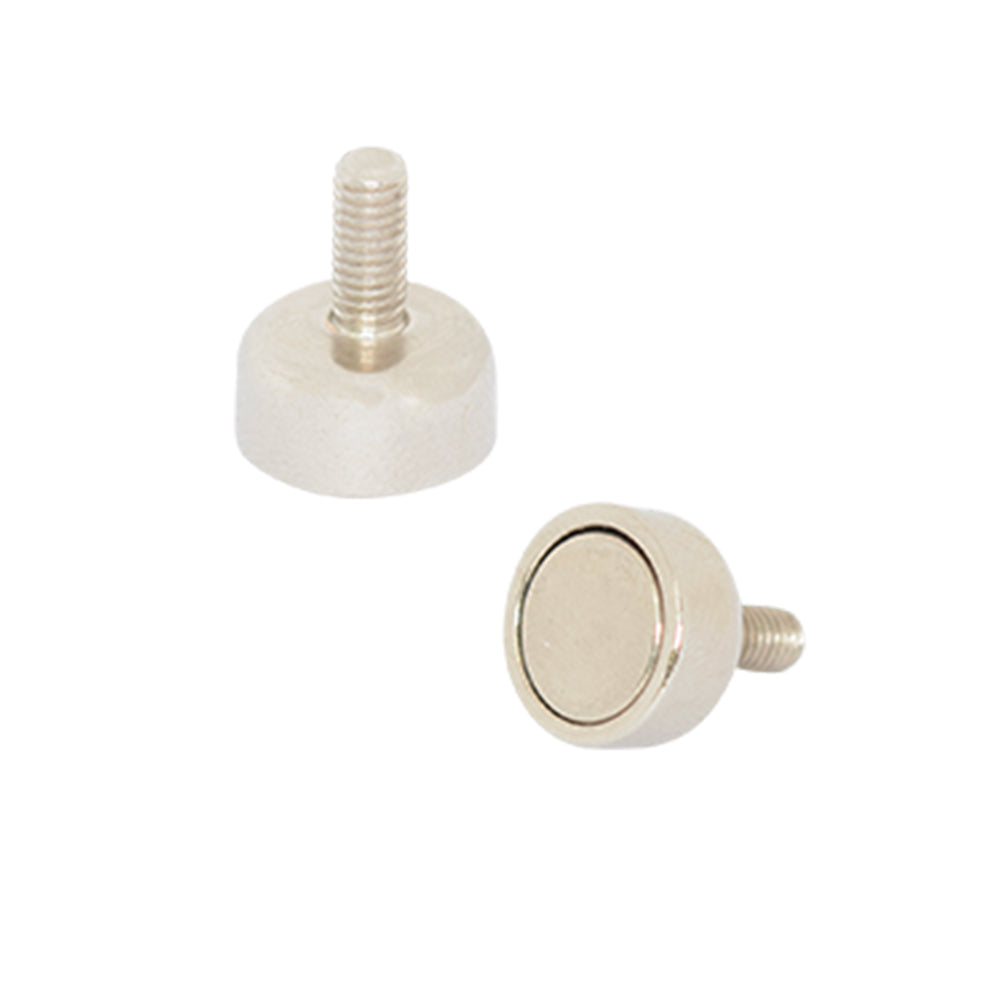

This Rare Earth male threaded pot magnet has a diameter of 10mm, a total height of 12mm, and a magnet housing thickness of 5mm. It has a M3 thread with an external boss of 7mm. This male threaded magnet has a pull force of 2.2 kilograms, and a weight of 3 grams. This product is identified by the AMF Magnets part number AMFYPC10.
Uses for our Rare Earth Male Threaded Pot Magnets:
These Neodymium holding pot magnets are high strength magnets in a mild steel cap that protects the magnet from damage and also increases its holding power. The Male Thread allows the magnet to be held securely in position with a nut and washer. These strong discs can be attached to thin timber, plastic or non-ferrous sheets so they can bond to metal frames or other metal surfaces.
| ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 21.5/24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
