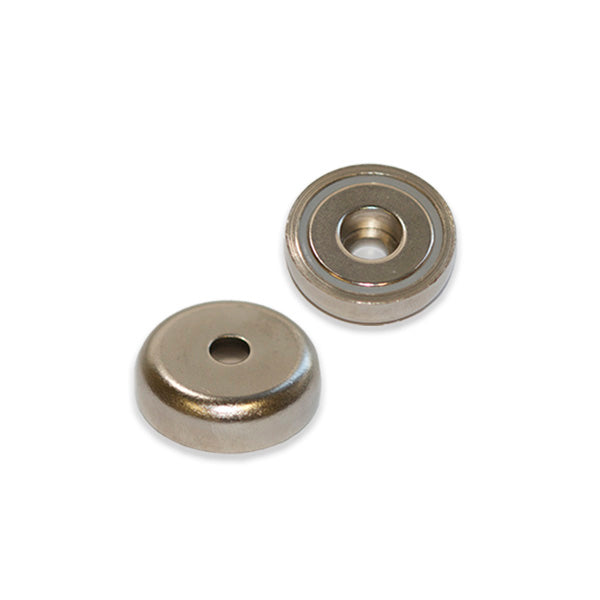

Neodymium Pot - Round Hole 20mm x 7mm

Product code: AMFYPB20

£3.54for 1 to 9 items
£2.89buy 10 to 99 itemsand save 18%
£2.34buy 100+ itemsand save 33%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot - Round Hole 20mm x 7mm

Product Code AMFYPB20
Pull Force* 6 kg
Weight 12 gm
Style Rare earth round hole pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 7mm

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 20mm and an inside diameter of 4.5mm with an internal flange hole of 8mm. This round hole pot magnet has a thickness of 7mm, a pull force of 6kg and a weight of 12 grams. It is identified by the AMF magnet part number AMFYPB20.

Uses for our rare earth round hole pot magnets:

Neodymium Holding Pot magnets have a mild steel casing or cap on one side that deflects the flow of magnetism back to the base and increases its overall strength and holding ability. The capping also provides protection for the magnet against chipping or cracking. The Round Hole version of this Pot magnet is designed to accommodate a threaded bolt and nut to secure them in position. Unlike screws, this nut and bolt method of attachment is unlikely to be weakened by bumping, vibration or repeated use and is particularly helpful when attaching to plastic surfaces. The increased strength afforded generally by Pot type magnets means a smaller dimension magnet can be used to the same effect as a larger non-capped item. This provides benefits in overall size dimensions and the general footprint of the products and designs in which they're included.

Round Hole Pots are ideal for creating a strong bond between metal objects and plastic or timber structures and where the bond needs to be broken and reinstated repeatedly or on a regular basis.



ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 7.9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471

Neodymium Pot - Round Hole 20mm x 7mm (AMFYPB20)

Magnetic Product Description:

This rare earth pot magnet has an outside diameter of 20mm and an inside diameter of 4.5mm with an internal flange hole of 8mm. This round hole pot magnet has a thickness of 7mm, a pull force of 6kg and a weight of 12 grams. It is identified by the AMF magnet part number AMFYPB20.

Uses for our rare earth round hole pot magnets:

Neodymium Holding Pot magnets have a mild steel casing or cap on one side that deflects the flow of magnetism back to the base and increases its overall strength and holding ability. The capping also provides protection for the magnet against chipping or cracking. The Round Hole version of this Pot magnet is designed to accommodate a threaded bolt and nut to secure them in position. Unlike screws, this nut and bolt method of attachment is unlikely to be weakened by bumping, vibration or repeated use and is particularly helpful when attaching to plastic surfaces. The increased strength afforded generally by Pot type magnets means a smaller dimension magnet can be used to the same effect as a larger non-capped item. This provides benefits in overall size dimensions and the general footprint of the products and designs in which they're included.

Round Hole Pots are ideal for creating a strong bond between metal objects and plastic or timber structures and where the bond needs to be broken and reinstated repeatedly or on a regular basis.
