Neodymium Threaded Eyelet - 20mm x 4mm
Product code: AMFYPF20
Neodymium Threaded Eyelet - 20mm x 4mm
Magnetic Product Description:

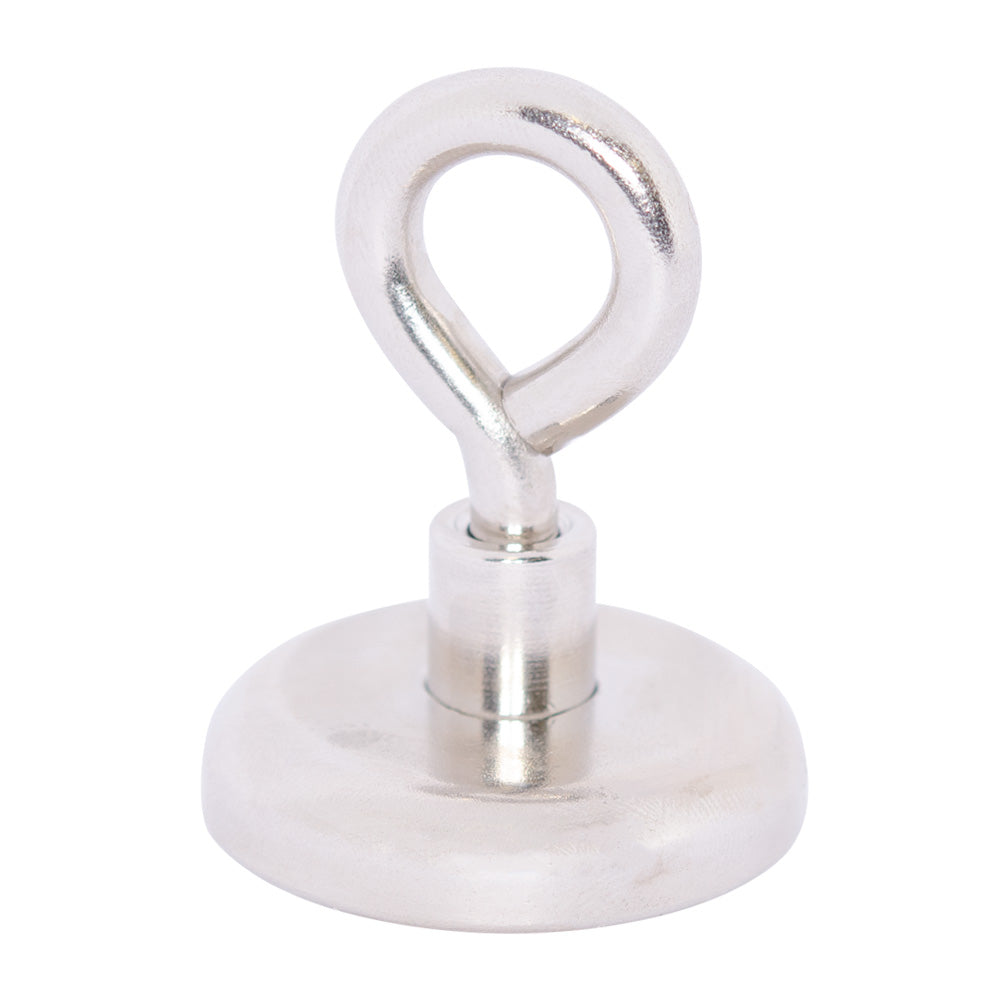

This Rare Earth Eyelet Holding Pot Magnet has a pull force of 10kg and a weight of 21 grams. It has a diameter of 20mm, a total height of 31mm and a magnet housing thickness of 7mm. This Neodymium pot magnet has an M4 thread with a 4mm eyelet. It is identified by the AMF Magnets part number AMFYPF20.
Uses for our Rare Earth Threaded Eyelet Pot Magnets:
These Female Thread Holding Pot magnets are supplied with a Threaded Eyelet that can attach to metal surfaces and makes it easy to suspend string, rope, wiring or cable above the ground and out of the way. The steel capping around the Neodymium disc directs more magnetic field to the base creating extra holding strength and also helps to protect the disc inside from damage and corrosion. By attaching the holding pot to metal surfaces such as shelving, framework, scaffolding, safety cages or truck, boat or trailer bodies, any rope-like material can be threaded through the eye and held securely in position. As circumstances change the positioning can be adjusted to suit without drilling or the use of screws and without the need for tools or a power supply.
| ModelNo. | DØ | d2 | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPF16 | 16 | 6 | 4 | 37 | 13 | 5.5 | 11 |
| AMFYPF20 | 20 | 6 | 4 | 37 | 15 | 10 | 21 |
| AMFYPF25 | 25 | 6 | 5 | 30 | 12 | 22 | 37 |
| AMFYPF32 | 32 | 10 | 6 | 47 | 18 | 34 | 56 |
| AMFYPF36 | 36 | 10 | 6 | 47 | 18 | 41 | 68 |
| AMFYPF42 | 42 | 10 | 6 | 47 | 20 | 68 | 97 |
| AMFYPF48 | 48 | 12 | 8 | 70 | 24 | 81 | 97 |
| AMFYPF60 | 60 | 12 | 8 | 70 | 30 | 113 | 282 |
| AMFYPF75 | 75 | 12 | 10 | 98 | 34 | 164 | 560 |
Neodymium Threaded Eyelet - 20mm x 4mm (AMFYPF20)
Magnetic Product Description:
This Rare Earth Eyelet Holding Pot Magnet has a pull force of 10kg and a weight of 21 grams. It has a diameter of 20mm, a total height of 31mm and a magnet housing thickness of 7mm. This Neodymium pot magnet has an M4 thread with a 4mm eyelet. It is identified by the AMF Magnets part number AMFYPF20.
Uses for our Rare Earth Threaded Eyelet Pot Magnets:
These Female Thread Holding Pot magnets are supplied with a Threaded Eyelet that can attach to metal surfaces and makes it easy to suspend string, rope, wiring or cable above the ground and out of the way. The steel capping around the Neodymium disc directs more magnetic field to the base creating extra holding strength and also helps to protect the disc inside from damage and corrosion. By attaching the holding pot to metal surfaces such as shelving, framework, scaffolding, safety cages or truck, boat or trailer bodies, any rope-like material can be threaded through the eye and held securely in position. As circumstances change the positioning can be adjusted to suit without drilling or the use of screws and without the need for tools or a power supply.
| ModelNo. | DØ | d2 | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPF16 | 16 | 6 | 4 | 37 | 13 | 5.5 | 11 |
| AMFYPF20 | 20 | 6 | 4 | 37 | 15 | 10 | 21 |
| AMFYPF25 | 25 | 6 | 5 | 30 | 12 | 22 | 37 |
| AMFYPF32 | 32 | 10 | 6 | 47 | 18 | 34 | 56 |
| AMFYPF36 | 36 | 10 | 6 | 47 | 18 | 41 | 68 |
| AMFYPF42 | 42 | 10 | 6 | 47 | 20 | 68 | 97 |
| AMFYPF48 | 48 | 12 | 8 | 70 | 24 | 81 | 97 |
| AMFYPF60 | 60 | 12 | 8 | 70 | 30 | 113 | 282 |
| AMFYPF75 | 75 | 12 | 10 | 98 | 34 | 164 | 560 |
Neodymium Threaded Eyelet - 20mm x 4mm (AMFYPF20)
