Neodymium Threaded Eyelet - 32mm x 6mm
Product code: AMFYPF32
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

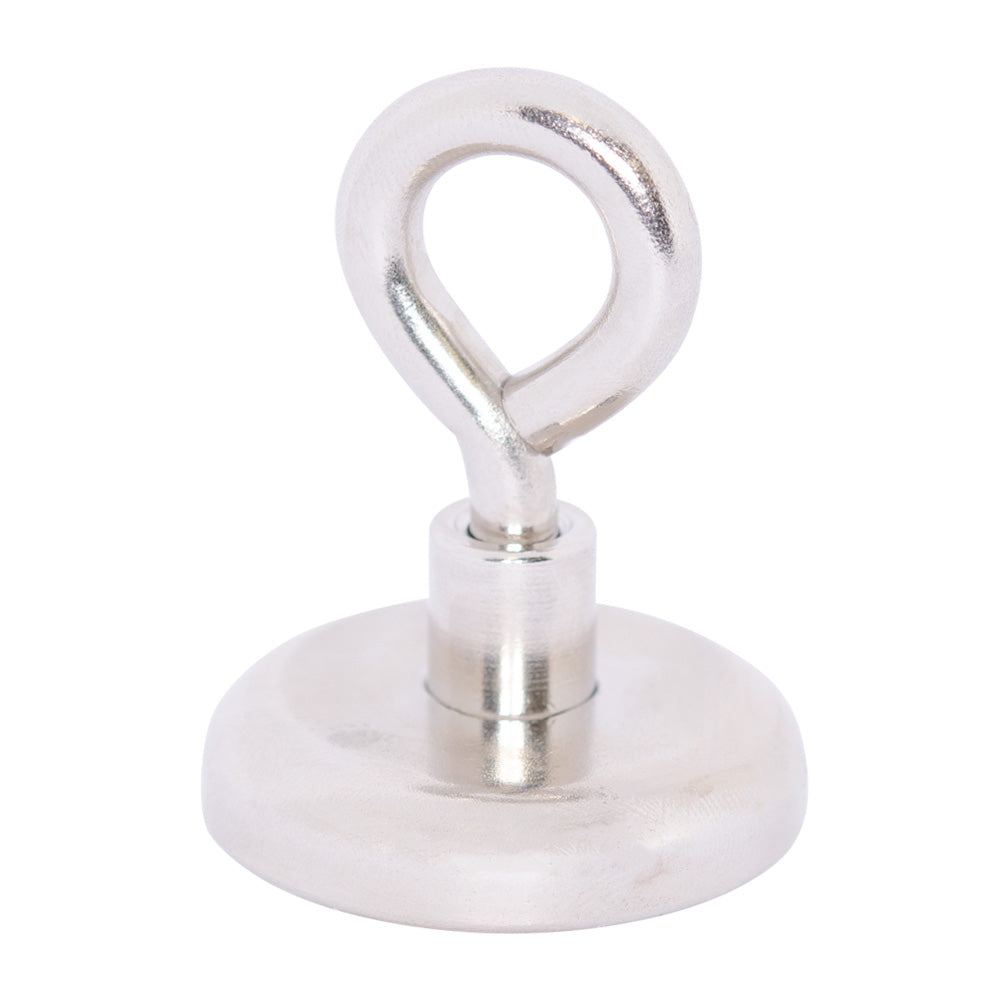

This Rare Earth threaded eyelet pot magnet has a pull force of 34kg and a weight of 56 grams. It has a diameter of 32mm, a total height of 41mm and a magnet housing thickness of 8mm. This neodymium pot magnet has an M6 thread with an 6mm eyelet. It is identified by the AMF magnet part number AMFYPF32.
Uses for our Rare Earth Threaded Eyelet Pot Magnets:
These Female Thread Holding Pot magnets are supplied with a Threaded Eyelet that makes it easy to suspend string, rope, wiring or cable above the ground and out of the way. The steel capping around the Neodymium disc directs more magnetic field to the base crreating extra holding ability and also helps to protect the disc inside from damage and corrosion. By attaching the holding pot to metal surfaces such as shelving, framework, scaffolding, safety cages or truck, boat or trailer bodies, any rope-like material can be threaded through the eye and held securely in position. As circumstances change the positioning can be adjusted to suit without drilling or the use of screws and without the need for tools or a power supply.
| ModelNo. | DØ | d2 | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPF16 | 16 | 6 | 4 | 14 | 5 | 5.5 | 11 |
| AMFYPF20 | 20 | 6 | 4 | 31 | 7 | 10 | 21 |
| AMFYPF25 | 25 | 6 | 5 | 30 | 12 | 22 | 37 |
| AMFYPF32 | 32 | 10 | 6 | 41 | 8 | 34 | 56 |
| AMFYPF36 | 36 | 10 | 6 | 41 | 8 | 41 | 68 |
| AMFYPF42 | 42 | 10 | 6 | 45 | 9 | 68 | 97 |
| AMFYPF48 | 48 | 12 | 6 | 16 | 9 | 81 | 97 |
| AMFYPF60 | 60 | 12 | 8 | 23 | 15 | 113 | 282 |
| AMFYPF75 | 75 | 12 | 8 | 25 | 8 | 164 | 560 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
