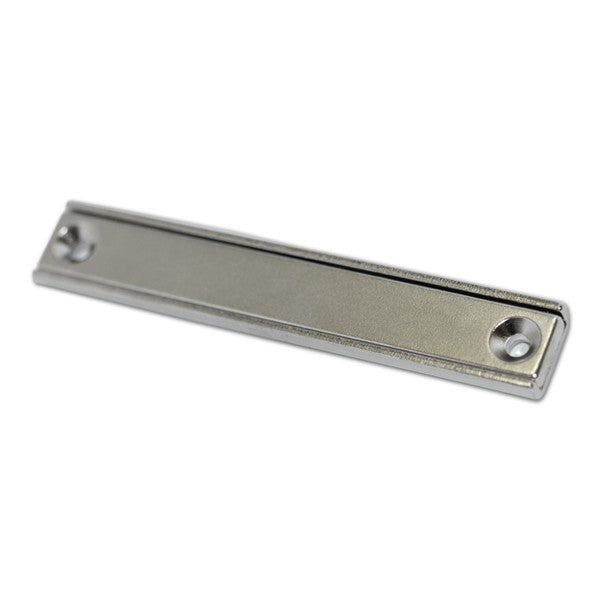

Neodymium Rectangular Pot - Countersunk 80mm x 13.5mm x 5mm
Product code: AMFYPSNi80
Neodymium Rectangular Pot - Countersunk 80mm x 13.5mm x 5mm
Magnetic Product Description:
This rectangular pot magnet has a length of 80mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length between the centre of each countersunk hole is 70mm. This magnet has a weight of 37.8g and a pull force of 33kg. It is identified by AMF Product Code AMFYPSNi80.
Uses for our Rare Earth Rectangular Countersunk Pot Magnets:
This rectangular pot magnet is a neodymium magnet encased inside a chrome plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 80mm in length, 13.5mm wide, and 5mm in height with two countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Perfect for mounting, home improvement, DIY projects such as a tool holder. A popular use for these magnets is as cabinet door or shower door catchers.
| Product Code | L | L1 | W | H | D1 | D | Weight | Pull Force |
| AMFYPSNI10 | 10mm | 5mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 4.5g | 4kg |
| AMFYPSNI20 | 20mm | 10mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 9.2g | 8kg |
| AMFYPSNI40 | 40mm | 30mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 18.4g | 17kg |
| AMFYPSNI60 | 60mm | 50mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 27.9g | 30kg |
| AMFYPSNI80 | 80mm | 70mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 37.8g | 33kg |
Neodymium Rectangular Pot - Countersunk 80mm x 13.5mm x 5mm (AMFYPSNi80)
Magnetic Product Description:
This rectangular pot magnet has a length of 80mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length between the centre of each countersunk hole is 70mm. This magnet has a weight of 37.8g and a pull force of 33kg. It is identified by AMF Product Code AMFYPSNi80.
Uses for our Rare Earth Rectangular Countersunk Pot Magnets:
This rectangular pot magnet is a neodymium magnet encased inside a chrome plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 80mm in length, 13.5mm wide, and 5mm in height with two countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Perfect for mounting, home improvement, DIY projects such as a tool holder. A popular use for these magnets is as cabinet door or shower door catchers.
| Product Code | L | L1 | W | H | D1 | D | Weight | Pull Force |
| AMFYPSNI10 | 10mm | 5mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 4.5g | 4kg |
| AMFYPSNI20 | 20mm | 10mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 9.2g | 8kg |
| AMFYPSNI40 | 40mm | 30mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 18.4g | 17kg |
| AMFYPSNI60 | 60mm | 50mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 27.9g | 30kg |
| AMFYPSNI80 | 80mm | 70mm | 13.5mm | 5mm | 3.3mm | 6.5mm | 37.8g | 33kg |
