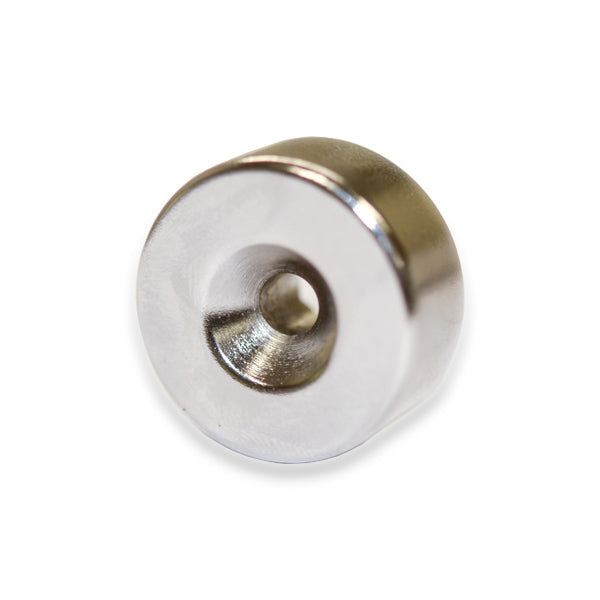

Neodymium Ring - 22mm x 4.5mm x 10mm (Countersunk)

Product code: 23004

£10.54for 1 to 9 items
£9.19buy 10 to 99 itemsand save 12%
£7.92buy 100+ itemsand save 24%

Prices are GST Incl.

Volume pricing available on request

Neodymium Ring - 22mm x 4.5mm x 10mm (Countersunk)

Product Code 23004
Pull Force* 12.6 kg
Weight 27 gm
Style Rare Earth Ring magnet c/s
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 10mm
Dimensions Outside Diameter:22mm, Inside Diameter:4.5mm, Thickness:10mm

Magnetic Product Description:

This rare earth ring magnet has an outside diameter of 22mm, an inside diameter of 4.5mm and a thickness of 10mm. It has a pull force of 12.6kg. It is identified by the AMF magnet part number 23004.

Uses for our rare earth ring magnets:

Countersunk Ring Magnets can be secured in position with a flat head screw and recessed into timber or any similar material to provide a point of attraction that passing metallic material must obey. This can be an effective way to secure and hold in position window shutters, window blinds, curtains, drawers, cupboards and cabinetry. This method can provide a modernistic element to window furnishings and eliminates the need for ugly, clumsy and dust-collecting latches or hooks. Away from home, these magnets can be just as practical around your boat, truck, campervan or motorhome, providing a temporary or permanent way to stabilise equipment and a fast and secure method for attaching screens for privacy, protection or insulation from the weather.
