Neodymium Ring - 50mm x 15mm x 10mm DIAMETRIC N38
Product code: 23001B
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

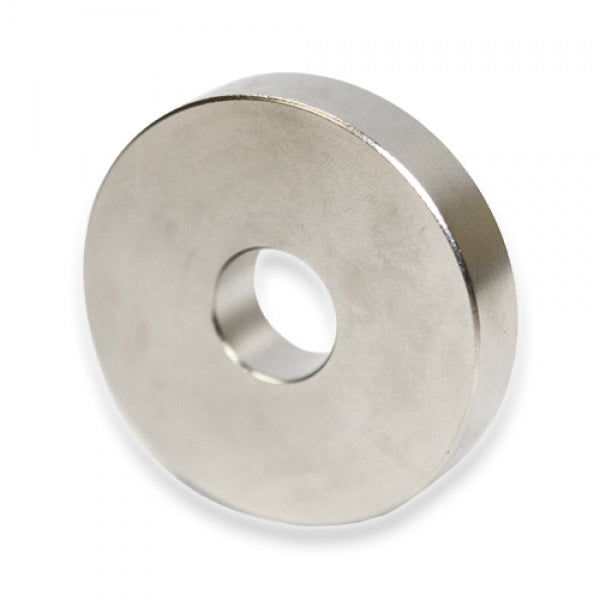

This rare earth ring magnet has an outside diameter of 50mm, an inside diameter of 15mm and a thickness of 10mm. It is identified by the AMF magnet part number 23001B.
Uses for our rare earth ring magnets:
These Neodymium Rings, unlike most, are magnetised Diametrically and have special applications in industrial processing. Sometimes threaded onto spools axles or rods, Rng magnets, as well as regulating the movement of nearby moving parts, also restrain or deflect moving parts that might otherwise shift from their position and cause damage or reduce mechanical efficiency. The consistent and predictable magnetic strength of each particular magnet allows engineers to design sophisticated automated equipment that is reliable and cost-effective and makes mass-production processes viable.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
