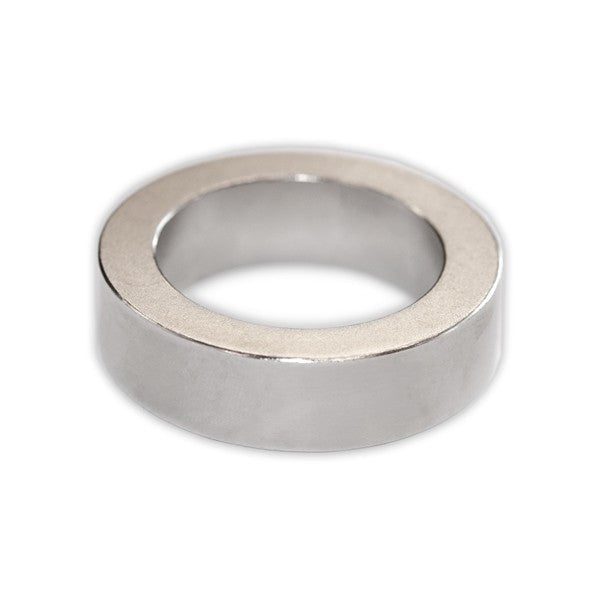

Neodymium Ring Magnet - 38mm x 20mm x 10mm
Product code: 23002X
£23.14for 1 to 9 items
£17.85buy 10 to 99 itemsand
save 23%
£14.27buy 100+ itemsand
save 38%
Total
£23.14
Neodymium Ring Magnet - 38mm x 20mm x 10mm
Product Code
23002X
Pull Force*
19 kg
Weight
60 gm
Style
Rare Earth Ring Magnet
Gauss
-1,460
Grade
N35
Tolerance
+/- 0.05mm
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetised thru the 10mm
Dimensions
Outside Diameter:38mm, Inside Diameter:20mm, Thickness:10mm
Magnetic Product Description:
This Rare Earth ring magnet has an outside diameter of 38mm, an inside diameter of 20mm and a thickness of 10mm. It is identified by the AMF magnet part number 23002X.
Uses for our Rare Earth Ring Magnets:
Â
Neodymium Ring Magnet - 38mm x 20mm x 10mm (23002X)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.18-1.25 | N/A |
| Remanence Br(kGs) | |
| 11.8-12.5 | N/A |
| Coercivity bHc(kA/m) | |
| >=859 | N/A |
| Coercivity bHc(Oe) | |
| >=10.8 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 263-294 | N/A |
| Max Energy Product(BH)max(MGOe) | |
| 33-37 | N/A |
| Grade | N35 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.18-1.25 | N/A |
| Remanence Br(kGs) | 11.8-12.5 | N/A |
| Coercivity bHc(kA/m) | >=859 | N/A |
| Coercivity bHc(Oe) | >=10.8 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=955 | N/A |
| Intrinsic Coercivity iHc(Oe) | >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | 263-294 | N/A |
| Max Energy Product(BH)max(MGOe) | 33-37 | N/A |
