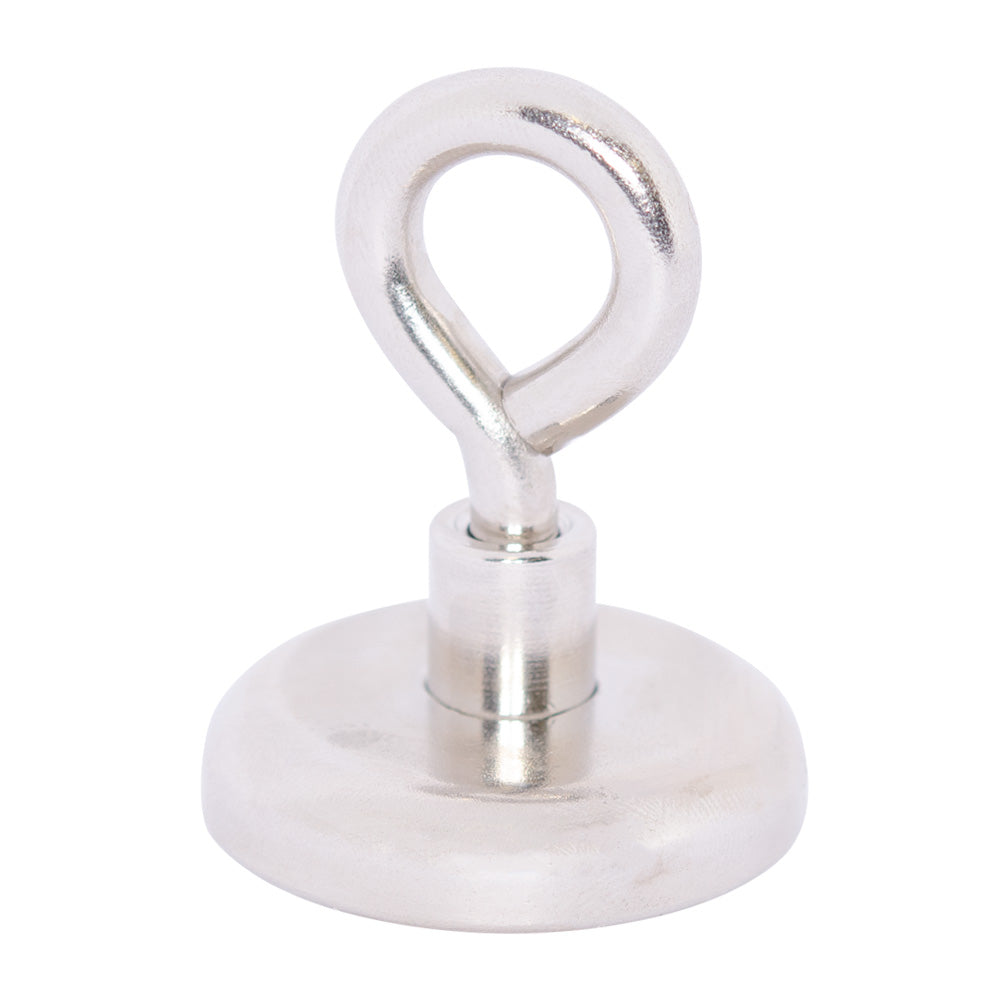

Neodymium Threaded Eyelet - 48mm x 8mm
Product code: AMFYPF48
Neodymium Threaded Eyelet - 48mm x 8mm
Magnetic Product Description:
This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 81kg and a weight of 200 grams. It has a diameter of 48mm, a total height of 15mm and a magnet housing thickness of 25 mm. This neodymium pot magnet has an M8 thread with a 7mm eyelet. It is identified by the AMF magnet part number AMFYPF48.
Uses for our Rare Earth Threaded Eyelet Pot Magnets:
These Female Thread Holding Pot magnets are supplied with a Threaded Eyelet that makes it easy to suspend string, rope, wiring or cable above the ground and out of the way. The steel capping around the Neodymium disc directs more magnetic field to the base creating extra holding ability and also helps to protect the disc inside from damage and corrosion. By attaching the holding pot to metal surfaces such as shelving, framework, scaffolding, safety cages or truck, boat or trailer bodies, any rope-like material can be threaded through the eye and held securely in position. As circumstances change the positioning can be adjusted to suit without drilling or the use of screws and without the need for tools or a power supply.
| ModelNo. | DØ | d2 | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPF16 | 16 | 6 | 4 | 37 | 13 | 5.5 | 11 |
| AMFYPF20 | 20 | 6 | 4 | 37 | 15 | 10 | 21 |
| AMFYPF25 | 25 | 6 | 5 | 30 | 12 | 22 | 37 |
| AMFYPF32 | 32 | 10 | 6 | 47 | 18 | 34 | 56 |
| AMFYPF36 | 36 | 10 | 6 | 47 | 18 | 41 | 68 |
| AMFYPF42 | 42 | 10 | 6 | 47 | 20 | 68 | 97 |
| AMFYPF48 | 48 | 12 | 8 | 70 | 24 | 81 | 155 |
| AMFYPF60 | 60 | 12 | 8 | 70 | 30 | 113 | 282 |
| AMFYPF75 | 75 | 12 | 10 | 98 | 34 | 164 | 560 |
Neodymium Threaded Eyelet - 48mm x 8mm (AMFYPF48)
