Neodymium Threaded Eyelet - 75mm x 8mm

Product code: AMFYPF75

£107.96for 1 to 9 items
£71.96buy 10 to 99 itemsand save 33%
£62.96buy 100+ itemsand save 41%
Total
£107.96

Prices are GST Incl.

Volume pricing available on request

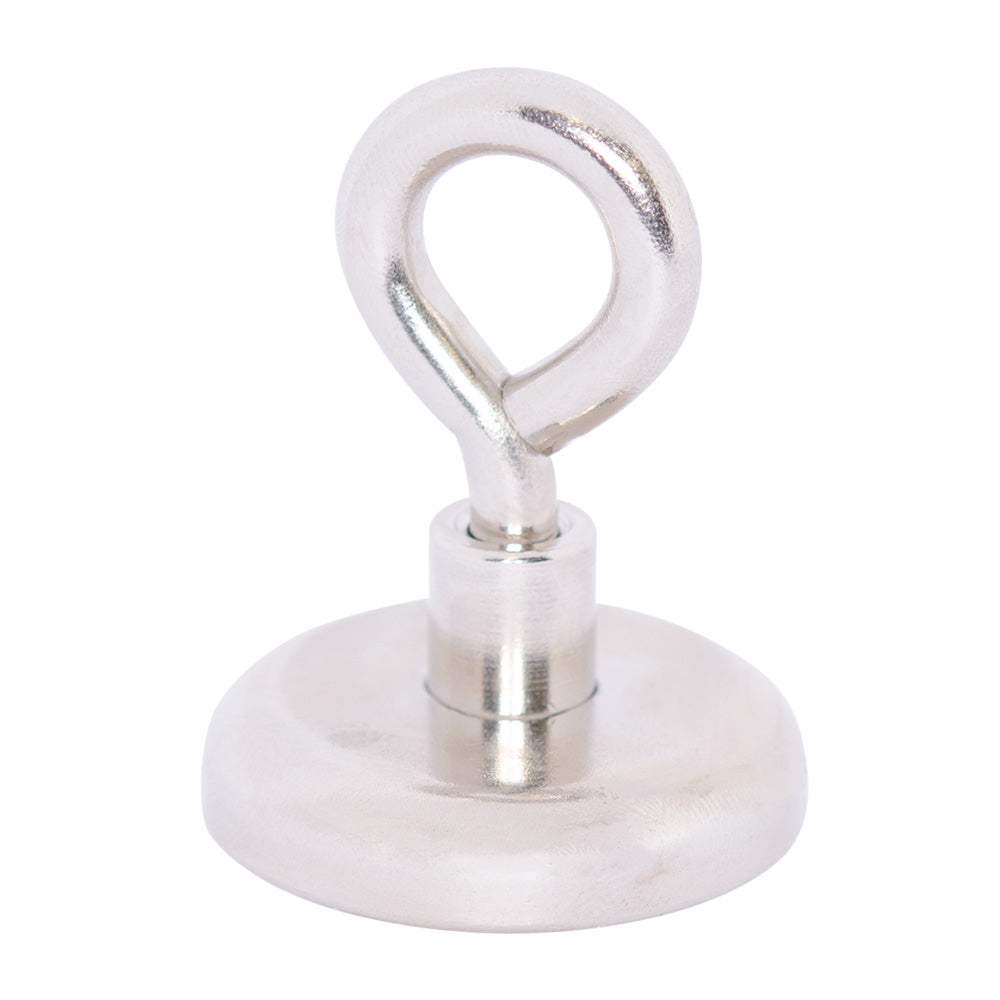

Neodymium Threaded Eyelet - 75mm x 8mm

Product Code AMFYPF75
Pull Force* 164 kg
Weight 560 gm
Style Rare earth threaded eyelet pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 164kg and a weight of 560 grams. It has a diameter of 75mm, a total height of 25mm and a magnet housing thickness of 8mm. This neodymium pot magnet has an M10 thread with an 8mm eyelet. It is identified by the AMF magnet part number AMFYPF75.

Uses for our Rare Earth Threaded Eyelet Pot Magnets:

These Female Thread Holding Pot magnets are supplied with a Threaded Eyelet that makes it easy to suspend string, rope, wiring or cable above the ground and out of the way. The steel capping around the Neodymium disc directs more magnetic field to the base creating extra holding ability and also helps to protect the disc inside from damage and corrosion. By attaching the holding pot to metal surfaces such as shelving, framework, scaffolding, safety cages or truck, boat or trailer bodies, any rope-like material can be threaded through the eye and held securely in position. As circumstances change the positioning can be adjusted to suit without drilling or the use of screws and without the need for tools or a power supply.



ModelNo. d2 M H h Holding force(kg) Weight (g)
AMFYPF16 16 6 4 37 13 5.5 11
AMFYPF20 20 6 4 37 15 10 21
AMFYPF25 25 6 5 30 12 22 37
AMFYPF32 32 10 6 47 18 34 56
AMFYPF36 36 10 6 47 18 41 68
AMFYPF42 42 10 6 47 20 68 97
AMFYPF48 48 12 8 70 24 81 97
AMFYPF60 60 12 8 70 30 113 282
AMFYPF75 75 12 10 98 34 164 560

Neodymium Threaded Eyelet - 75mm x 8mm (AMFYPF75)

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 164kg and a weight of 560 grams. It has a diameter of 75mm, a total height of 25mm and a magnet housing thickness of 8mm. This neodymium pot magnet has an M10 thread with an 8mm eyelet. It is identified by the AMF magnet part number AMFYPF75.

Uses for our Rare Earth Threaded Eyelet Pot Magnets:

These Female Thread Holding Pot magnets are supplied with a Threaded Eyelet that makes it easy to suspend string, rope, wiring or cable above the ground and out of the way. The steel capping around the Neodymium disc directs more magnetic field to the base creating extra holding ability and also helps to protect the disc inside from damage and corrosion. By attaching the holding pot to metal surfaces such as shelving, framework, scaffolding, safety cages or truck, boat or trailer bodies, any rope-like material can be threaded through the eye and held securely in position. As circumstances change the positioning can be adjusted to suit without drilling or the use of screws and without the need for tools or a power supply.



ModelNo. d2 M H h Holding force(kg) Weight (g)
AMFYPF16 16 6 4 37 13 5.5 11
AMFYPF20 20 6 4 37 15 10 21
AMFYPF25 25 6 5 30 12 22 37
AMFYPF32 32 10 6 47 18 34 56
AMFYPF36 36 10 6 47 18 41 68
AMFYPF42 42 10 6 47 20 68 97
AMFYPF48 48 12 8 70 24 81 97
AMFYPF60 60 12 8 70 30 113 282
AMFYPF75 75 12 10 98 34 164 560

Neodymium Threaded Eyelet - 75mm x 8mm (AMFYPF75)
