Rectangular Neodymium Rubber Coated Magnet | 52mm x 32mm x 6mm
Product code: RCNL52B
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

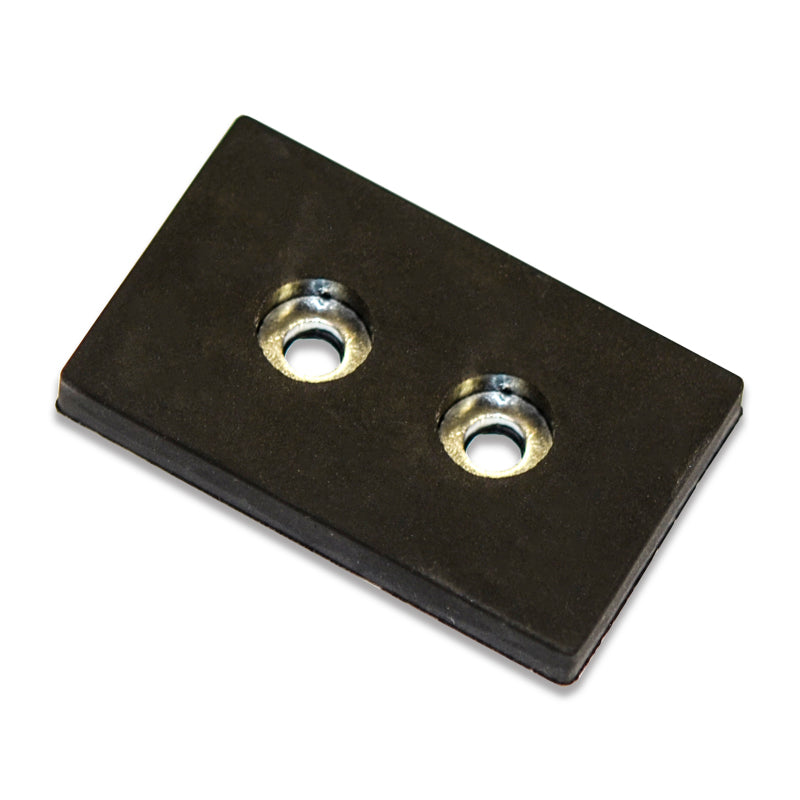

This rectangular rubber coated magnet is 52mm x 32mm x 6mm with a Neodymium (NdFeB) magnetic core, and a Santoprene rubber coating that protects delicate surface areas. It has two D5mm boreholes, each with a D10mm counterbore. This Rare Earth magnet weighs 40 grams. It is identified by the AMF magnet part number RCNL52B.
Uses for our Rare Earth Rectangular Rubber Coated magnets:
These very versatile Neodymium magnets that are encased in rubber are water resistant and more resistant to collision damage and corrosion than uncoated magnets, The Rubber Coating allows multiple attach and remove motions without scratching or surface damage and the convenient recessed mounting holes allow it to be attached with bolts or screws.
Common usage for rubber-coated magnets is the attachment of materials such as signs, mementoes or memorabilia to painted or easily damaged metallic surfaces. Soft closing access doors on metal storage boxes is an application used by tradespeople on their vehicles Other uses include suspending sun or privacy screens and numerous holding duties on the metal bodied portable offices and accommodation that is common on mining and construction sites.
Rectangular rubber coated magnets are ideal for use on rusty or painted metallic surfaces such as corrugated iron sheeting or outdoor steel fencing panels. The high-quality Santoprene rubber also prevents marks and scratches on delicate surfaces. These rubber coated magnets have strong Neodymium magnets inside the rubber casing making them both powerful and gentle to attach. Rubber Coatings also give extra protection against moisture and adverse weather conditions.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
