Self Adhesive Neodymium Disc Magnet - 10mm x 5mm N48 | 3M VHB Adhesive
Product code: 20048C
£1.81for 1 to 9 items
£1.45buy 10 to 99 itemsand
save 20%
£1.19buy 100+ itemsand
save 34%
Total
£1.81
Self Adhesive Neodymium Disc Magnet - 10mm x 5mm N48 | 3M VHB Adhesive
Product Code
20048C
Pull Force*
3.36 kg
Weight
1 gm
Style
Rare Earth Disc magnet
Gauss
5020
Grade
N48
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetised
Dimensions
Height:5mm, Diameter:10mm
Magnetic Product Description:

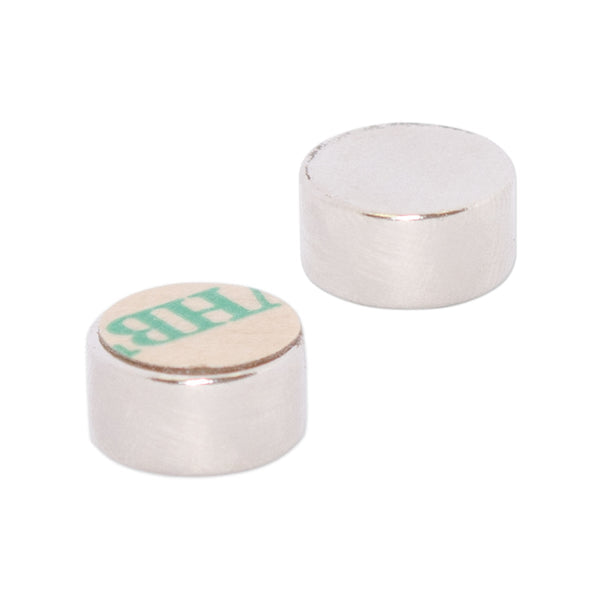

This rare-earth disc has a diameter of 10mm and a height of 5mm. It has a pull force of 3.36kg. It is identified by the AMF magnet part number 20048B.
Uses for our rare earth disc magnets:
Self Adhesive Neodymium Disc Magnet - 10mm x 5mm N48 | 3M VHB Adhesive (20048C)
| Grade | |
|---|---|
| N52 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.43-1.8 | N/A |
| Remanence Br(kGs) | |
| 14.3-14.8 | N/A |
| Coercivity bHc(kA/m) | |
| >=876 | N/A |
| Coercivity bHc(Oe) | |
| >=11 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=960 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 390-422 | N/A |
| Max Energy Product(BH)max(MGOe) | |
| 49-53 | N/A |
| Grade | N52 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.43-1.8 | N/A |
| Remanence Br(kGs) | 14.3-14.8 | N/A |
| Coercivity bHc(kA/m) | >=876 | N/A |
| Coercivity bHc(Oe) | >=11 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=960 | N/A |
| Intrinsic Coercivity iHc(Oe) | >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | 390-422 | N/A |
| Max Energy Product(BH)max(MGOe) | 49-53 | N/A |
Magnetic Product Description:
This rare-earth disc has a diameter of 10mm and a height of 5mm. It has a pull force of 3.36kg. It is identified by the AMF magnet part number 20048B.
Uses for our rare earth disc magnets:
Self Adhesive Neodymium Disc Magnet - 10mm x 5mm N48 | 3M VHB Adhesive (20048C)
| Grade | |
|---|---|
| N52 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.43-1.8 | N/A |
| Remanence Br(kGs) | |
| 14.3-14.8 | N/A |
| Coercivity bHc(kA/m) | |
| >=876 | N/A |
| Coercivity bHc(Oe) | |
| >=11 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=960 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 390-422 | N/A |
| Max Energy Product(BH)max(MGOe) | |
| 49-53 | N/A |
| Grade | N52 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.43-1.8 | N/A |
| Remanence Br(kGs) | 14.3-14.8 | N/A |
| Coercivity bHc(kA/m) | >=876 | N/A |
| Coercivity bHc(Oe) | >=11 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=960 | N/A |
| Intrinsic Coercivity iHc(Oe) | >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | 390-422 | N/A |
| Max Energy Product(BH)max(MGOe) | 49-53 | N/A |
