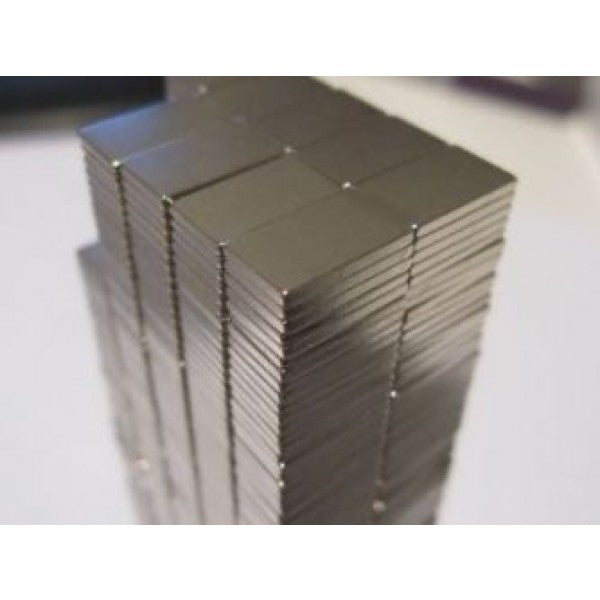

Neodymium Block Magnet 10x6x1mm N50
Product code: B-W6H1L10-N50
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This neodymium magnetic block has a length of 10mm, width of 6mm and a height of 1mm. It has a magnetic flux reading of 1734 Gauss and a pull force of 0.571 kilos. It is identified by the AMF magnet part number B-W6H1L10-N50.
Uses for our rare earth block magnets:
These small Neodymium block magnets can be referred to by a range of different names including bar magnets and rectangular magnets. However you refer to them, these rare earth blocks are a handy means to attach, fasten and secure ferrous materials. Perfect for woodworkers and cabinet makers, these bar magnets are small enough to be easily slotted into common thicknesses of wood or ply, for a seamless recessed finish.
Rare earth magnets are a relatively new discovery and as such they are not as familiar to the general population as more traditional types of permanent magnet like Ferrite or Alnico. Its strength is approximately seven times that of other types of magnets in the same dimensions and it is available in various grades and surface coatings. The majority of people in the workplace would not have learnt about the significantly more powerful magnetic properties of neo magnets and therefore underestimate the potential and opportunities they provide.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
