Neodymium Block Magnet - 5mm x 5mm x 5mm N50
Product code: B-W5H5L5-N50
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

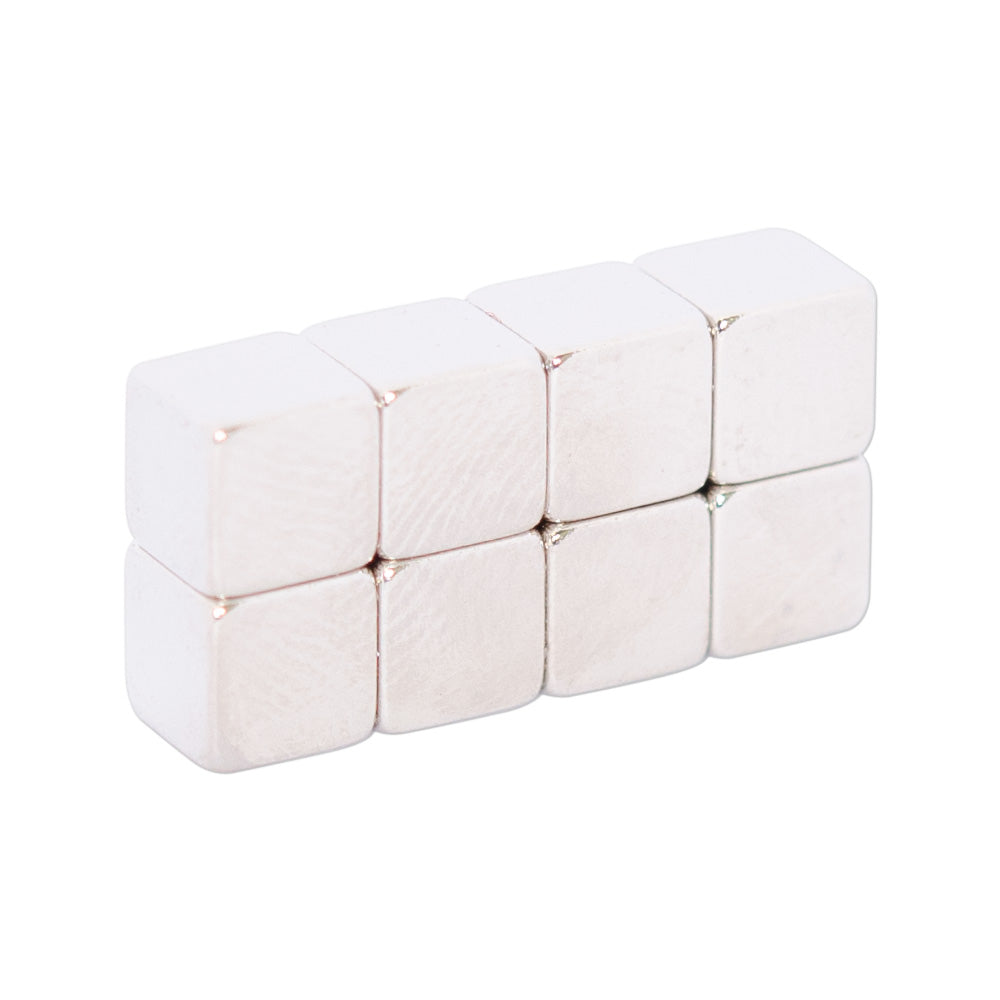

This rare earth block magnet has a length of 5mm, a width of 5mm and a thickness of 5mm. It is identified by the AMF magnet part number B-W5H5L5-N50.
Uses for our Rare Earth block magnets:
This small Neodymium block magnet is a perfect cube of magnetic power. There is something incredibly enticing about the perfect symmetry of a cube and it is no surprise these little magnets are popular with our customers. Cubes are also practical as the equal dimensions remove the need to double check the measurements and orientation when fixing or tooling the magnet into position. The powerful magnetic material used in manufacturing this magnet is not only the strongest type of magnetic material, Neodymium, it is also made from the second highest grade. This magnetic block has a silver finish courtesy of the Nickel coating that serves to protect the magnet from corrosion in standard atmospheric conditions. For applications that are inclined to encounter humid environments, there are alternative coatings such as gold and Teflon that provide a higher level of resistance to humidity than the standard Nickel.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
