Neodymium Magnetic Fixing Plate – D60mm | M16 Thread
Product code: MFP16
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

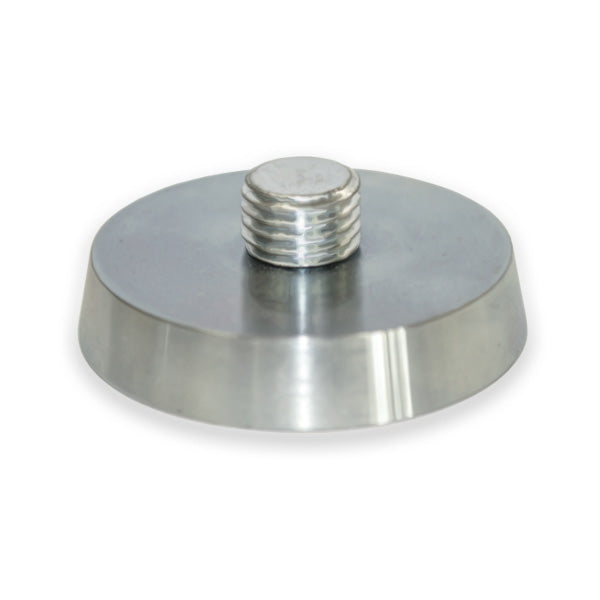

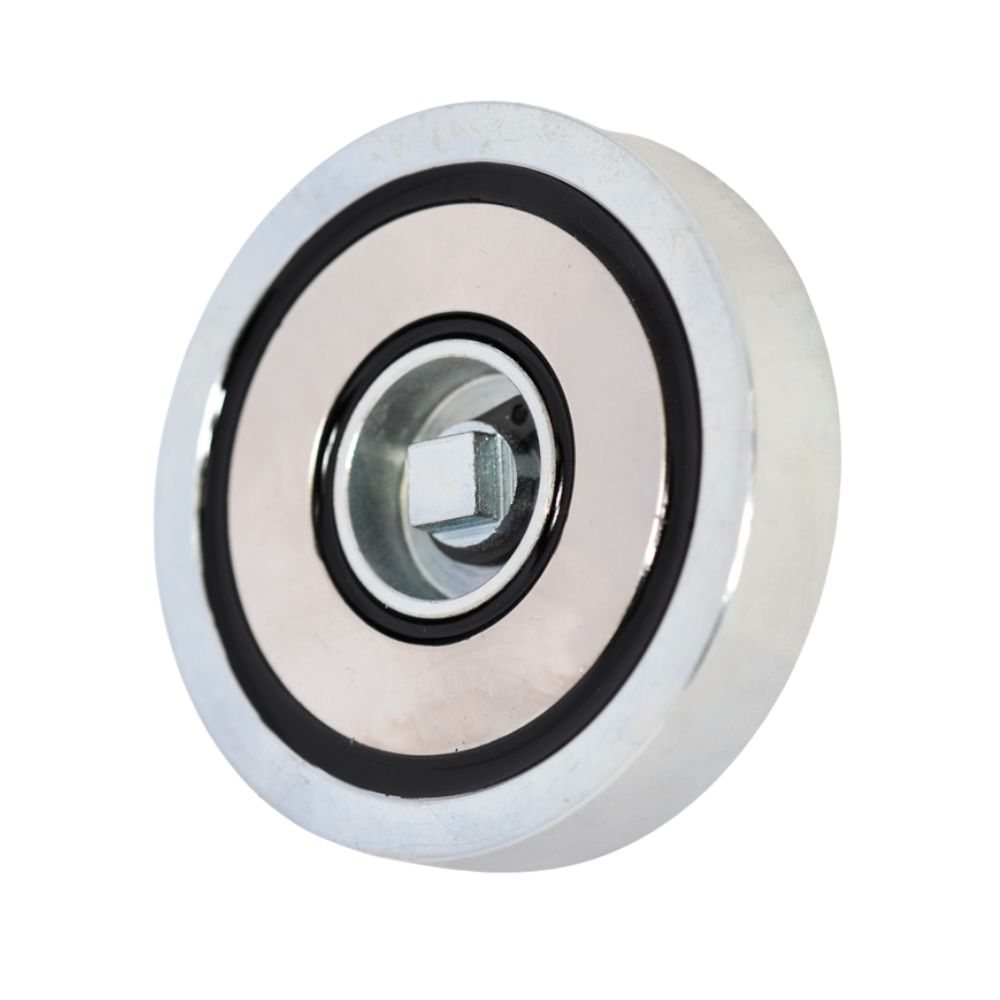

This product has a diameter of 60mm with M16 thread, a pull force of 50kg and is identified by AMF Part Number MFP16.
Uses for our Magnetic Fixing Plates:
Precast Concrete Panels display consistently superior quality to concrete that is poured On-site. The controlled atmosphere found in a factory ensures evenly cured concrete products in a safe and predictable environment and also allows close monitoring by staff to ensure only first-grade products reach the construction project. Most of the vagaries of On-Site castings, such as the need for teams of locally based Formworkers and Steel Fixers, or poor weather and traffic-delayed Concrete Trucks, are eliminated when the concrete components are pre-made and ready for assembly. Steel Formwork, unlike plywood, can be repeatedly used to make identical concrete modules of identical quality. Civil Engineers and Managers of Private and Public construction projects all rely on Pre-cast sections to meet their safety and economic targets. Managers and Foremen of infrastructure projects funded by Government or Public/Private Partnerships (PPP) like Bridges, Railways, Entertainment and Sporting venues, Tunnels, Elevated Roads and Walkways all ascribe to the strength, convenience and consistency that Precast concrete structures provide. Architects and Engineers can design with confidence, predictability and economy by using Precast Concrete to reduce labour costs, human error and adverse weather impact. This Neodymium Magnetic Plate is used to fix the locating sockets and lifting points to steel formwork before the concrete is poured. After pouring they can be easily removed and reused.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
