Neodymium Pot - Countersunk 20mm x 7mm | Nth Sth PAIR
Product code: AMFYPA20N/S
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

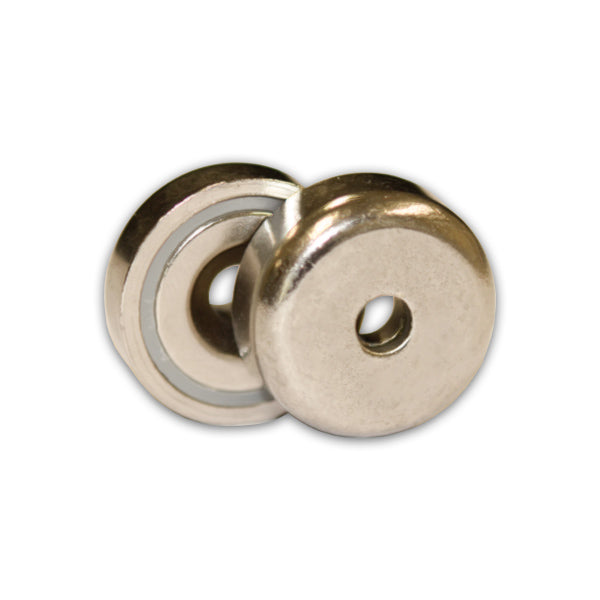

This north and south pair of rare earth countersunk pot magnet have a diameter of 20mm, a countersunk hole diameter of 4.5mm and a thickness of 7mm. It has a pull force of 6kg and a weight of 13 grams. It is identified by the AMF Magnet part number AMFYPA20NS.
Uses for our rare earth countersunk pot magnets:
Retail interior shop-fitting services and Commercial advertising designers use these North/Sout Paired Neodymium magnets to join different materials together in a permanent or more casual manner, These matched magnets, sometimes called Holding Pots can be screwed into screens, advertising boards or even the product itself and then magnetically attached to the corresponding magnet that is screwed into framework, windows, shelving or doors. Paired magnets align perfectly and make it possible to join non-metallic surfaces like cloth, timber and plastic together seamlessly and without nails, rivets, wire or glue. The magnets can be removed and easily reused when graphic displays or products become outdated or need to be replaced. The casing also protects the magnets from collision damage and corrosion.
Our 20mm rare earth pot magnet is ideal for keeping gates open or closed and attaching different objects to any surface. This rare earth pot magnet is a high strength magnet in a mild-steel nickel coated pot.
| SKU | DØ (mm) | D1Ø (mm) | D2Ø (mm) | H (mm) | Pull Force (kg) | Weight (g) |
| AMFYPA16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
| AMFYPA20 | 20 | 4.5 | 8.5 | 7 | 6 | 13 |
| AMFYPA25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
| AMFYPA32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
| AMFYPA36 | 36 | 6.5 | 12 | 9 | 29 | 52 |
| AMFYPA42 | 42 | 6.5 | 12 | 9 | 58 | 65 |
| AMFYPA48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
| AMFYPA60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
| AMFYPA75 | 75 | 10.5 | 19 | 18 | 162 | 488 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
