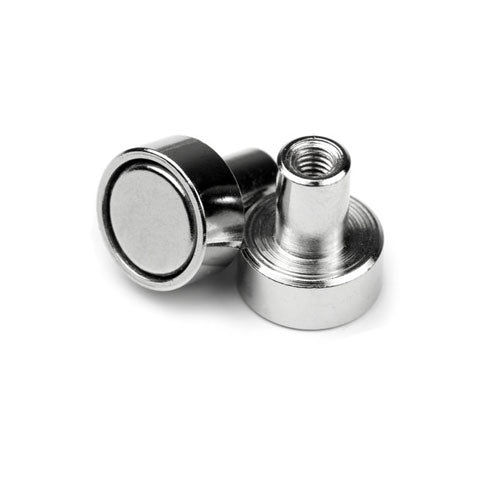

Female Thread Neodymium Pot - Diameter 12mm x 13mm
Product code: AMFYPD12
Female Thread Neodymium Pot - Diameter 12mm x 13mm
Magnetic Product Description:
This rare earth female threaded pot magnet has a diameter of 12mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a 3mm female thread. This female threaded magnet has a pull force of 3.2kg and a weight of 5 grams. It is identified by the AMF magnet part number AMFYPD12.
Uses for our rare earth female thread pot magnets:
These Female Thread Neodymium Holding Pot magnets are high strength magnets in a mild steel capping that gives extra protection from potential damage. Due to the protective cover on these pot magnets, most of their holding force is directed to the base. This makes them stronger than regular magnets and ideal for holding or hanging applications. By attaching these holding magnets, any material can be bonded to a metal surface. This magnet can be attached with a 3mm bolt or can be used to receive a threaded rod with graphic displays or advertising material attached to it.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
Female Thread Neodymium Pot - Diameter 12mm x 13mm (AMFYPD12)
