Male Thread Neodymium Pot - Diameter 32mm x 18mm
Product code: AMFYPC32
Male Thread Neodymium Pot - Diameter 32mm x 18mm
Magnetic Product Description:

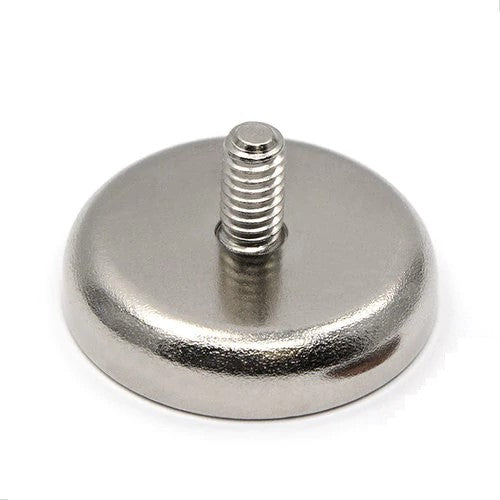

This rare earth male threaded pot magnet has a diameter of 32mm, a total height of 18mm and a magnet housing thickness of 8mm. It has a M6 thread with an external boss of 10mm. This male threaded magnet has a pull force of 34kg and a weight of 45 grams. It is identified by the AMF magnet part number AMFYPC32.
Uses for our rare earth male thread pot magnets:
Our Male Threaded holding pot magnets can be attached securely to any material with a washer and nut. The Neodymium holding pot magnets are very strong magnets with a mild steel capping on the upper side that protects the magnet from damage and also deflects magnetic flow to the base making them ideal for holding purposes. Male thread Pot magnets can be fixed to materials and equipment that need to be removed or repositioned on metal surfaces regularly without fear of loosening. Anything that can be drilled to provide a hole can also be magnetically held in place on metal surfaces.
| ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6&8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 6 | 21.5/24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
Male Thread Neodymium Pot - Diameter 32mm x 18mm (AMFYPC32)
