Male Thread Neodymium Pot - Diameter 60mm x 30mm
Product code: AMFYPC60
Male Thread Neodymium Pot - Diameter 60mm x 30mm
Magnetic Product Description:

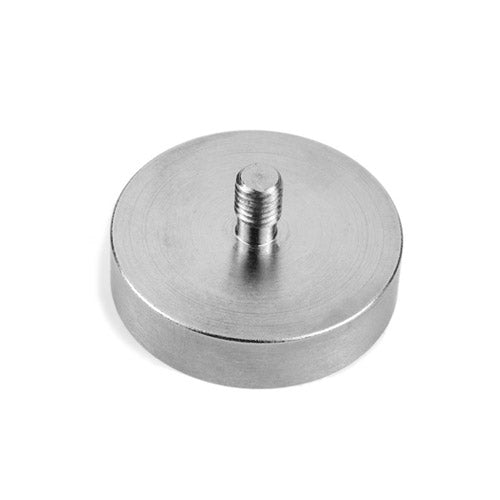

This rare earth male threaded pot magnet has a diameter of 60mm, a total height of 30mm and a magnet housing thickness of 15mm. It has a M8 thread with an external boss of 15mm. This male threaded magnet has a pull force of 113kg and a weight of 254 grams. It is identified by the AMF magnet part number AMFYPC60.
Uses for our rare earth male thread pot magnets:
Our Male Thread Holding Pot magnets are easily attached to non-magnetic material with a nut and washer. A hole drilled in plastic, plywood or aluminium will enable the capped Neodymium discs to be attached in a very secure manner and are ideal for fixing rigid partitions or soft coverings to metal framework. Removable screens or decorative items can also be attached temporarily or permanently using this simple and convenient method
| ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 21.5/24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
Male Thread Neodymium Pot - Diameter 60mm x 30mm (AMFYPC60)
Magnetic Product Description:
This rare earth male threaded pot magnet has a diameter of 60mm, a total height of 30mm and a magnet housing thickness of 15mm. It has a M8 thread with an external boss of 15mm. This male threaded magnet has a pull force of 113kg and a weight of 254 grams. It is identified by the AMF magnet part number AMFYPC60.
Uses for our rare earth male thread pot magnets:
Our Male Thread Holding Pot magnets are easily attached to non-magnetic material with a nut and washer. A hole drilled in plastic, plywood or aluminium will enable the capped Neodymium discs to be attached in a very secure manner and are ideal for fixing rigid partitions or soft coverings to metal framework. Removable screens or decorative items can also be attached temporarily or permanently using this simple and convenient method
| ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 21.5/24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
