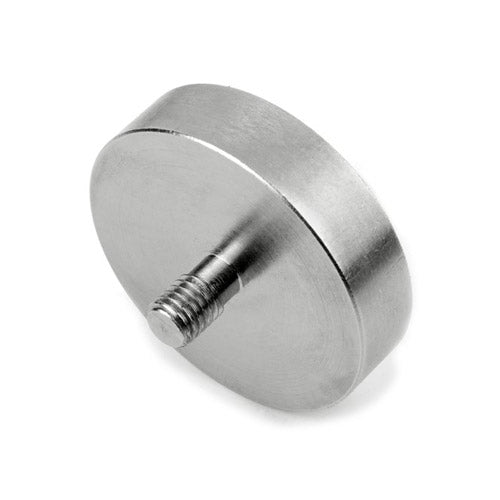

Male Thread Neodymium Pot - Diameter 75mm x 34mm
Product code: AMFYPC75
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This rare earth male threaded pot magnet has a diameter of 75mm, a total height of 34mm and a magnet housing thickness of 15mm. It has an M10 thread with an external boss of 19mm. This male threaded magnet has a pull force of 164kg and a weight of 550 grams. It is identified by the AMF magnet part number AMFYPC75.
Uses for our rare earth male thread pot magnets:
These Male Thread Neodymium Holding Pots are capped on one side. Unlike conventional disc magnets, the cap concentrates magnetic power towards the base, making this base surface stronger and able to hold more weight. The capped side features a thread to secure the magnet in position with a hexagonal nut. This 75mm diameter disc is our strongest rated holding pot and can hold up to 164 kg. Male thread pot magnets are appropriate for attaching non-magnetic materials such as timber or plastic sheeting with a hole to metal structures or frames such as windows or shelving.
| ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 21.5/24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
