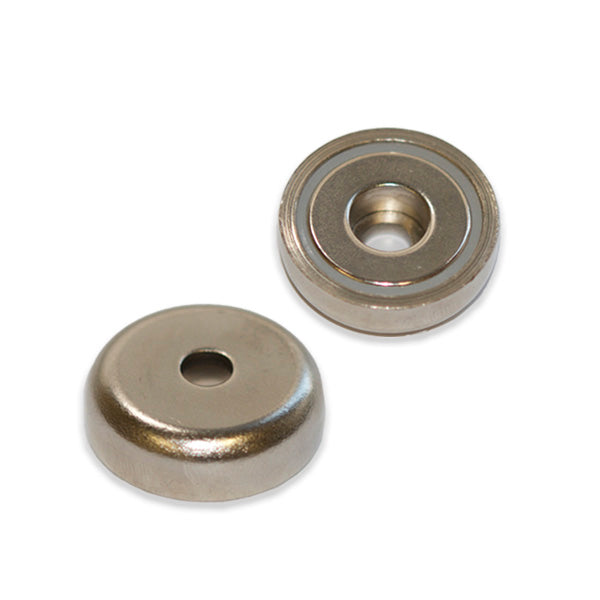

Neodymium Pot - Round Hole 48mm x 11.5mm
Product code: AMFYPB48
Neodymium Pot - Round Hole 48mm x 11.5mm
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 48mm and an inside diameter of 8.5mm with an internal flange hole of 15mm. This round hole pot magnet has a thickness of 11.5mm, a pull force of 63kg and a weight of 114 grams. It is identified by the AMF magnet part number AMFYPB48.
Uses for our rare earth round hole pot magnets:
Neodymium Holding Pot magnets have a mild steel casing or cap on one side that deflects the flow of magnetism back to the base and increases its overall strength and holding ability. The capping also provides protection for the magnet against chipping or cracking.
The Round Hole version of this Pot magnet is designed to accommodate a threaded bolt and nut to secure them in position. Unlike screws, this nut and bolt method of attachment is unlikely to be weakened by bumping, vibration or repeated use and is particularly helpful when attaching to plastic surfaces or thin timber framing. The increased strength afforded generally by Pot type magnets means a smaller dimension magnet can be used to the same effect as a larger non-capped item. This provides benefits in overall size dimensions and the general footprint of the products and designs in which they're included.
Round Hole Pots are ideal for creating a strong bond between metal objects and plastic or timber structures and where the bond needs to be broken and reinstated repeatedly or on a regular basis.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
