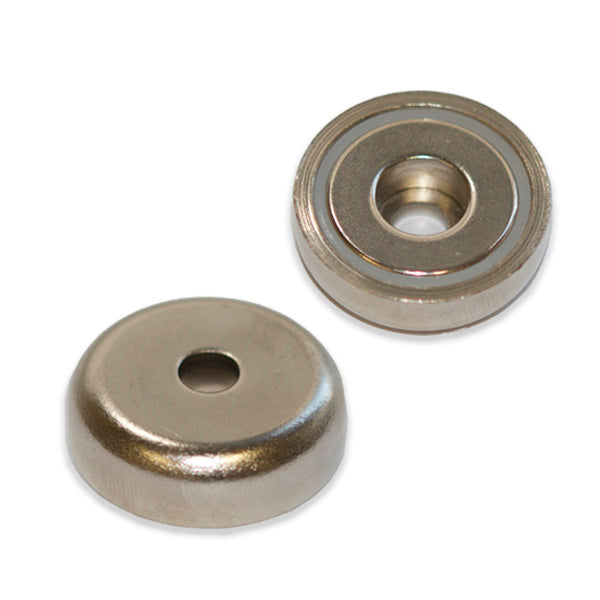

Neodymium Pot - Round Hole 75mm x 18mm
Product code: AMFYPB75
Neodymium Pot - Round Hole 75mm x 18mm
Magnetic Product Description:
This rare earth pot magnet has an outside diameter of 75mm and an inside diameter of 10.5mm with an internal flange hole of 18mm. This round hole pot magnet has a thickness of 18mm, a pull force of 155kg and a weight of 471 grams. It is identified by the AMF magnet part number AMFYPB75.
Uses for our rare earth round hole pot magnets:
Ths Round Hole Pot magnet is the biggest we stock and is largely only appropriate for industrial use. These Neodymium magnets have a mild steel casing or cap on one side that deflects the flow of magnetism back to the base and this increases its overall strength and holding ability. The capping also provides protection for the magnet against chipping or cracking.
The Round Hole version of this Pot magnet is designed to accommodate a threaded bolt and nut to secure them in position. Unlike screws, this nut and bolt method of attachment is unlikely to be loosened by bumping, vibration or repeated use and is particularly helpful when attaching to timber or thin metal frames. The increased strength afforded by Pot type magnets in general means a smaller dimension magnet can be used to the same effect as a larger non-capped item. This provides benefits in overall size dimensions and the general footprint of the products and designs in which they're included.
Round Hole Pots are ideal for creating a strong bond between metal objects and plastic or timber structures and where the bond needs to be broken and reinstated repeatedly or on a regular basis.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
