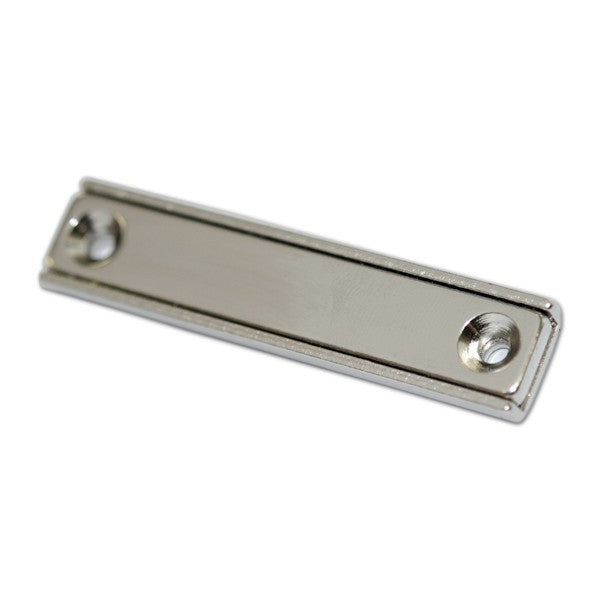

Neodymium Rectangular Pot - Countersunk 60mm x 13.5mm x 5mm

Product code: AMFYPSNi60

£15.71for 1 to 9 items
£12.56buy 10 to 99 itemsand save 20%
£10.99buy 100+ itemsand save 30%
Total
£15.71

Prices are GST Incl.

Volume pricing available on request

Neodymium Rectangular Pot - Countersunk 60mm x 13.5mm x 5mm

Product Code AMFYPSNi60
Pull Force* 30 kg
Weight 27.9 gm
Style Rare Earth Countersunk Rectangular Pot Magnet
Coating Nickel (NiCuNi)
Dimensions Outside Diameter:6.5mm, Inside Diameter:3.3mm, Width:13.5mm, Height:5mm, Length:60mm
countersunk

Magnetic Product Description:

This rectangular pot magnet has a length of 60mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length between the centre of each countersunk hole is 50mm. This magnet has a weight of 27.9g and a pull force of 30kg. It is identified by AMF Product Code AMFYPSNi60.

Uses for our Rare Earth Rectangular Countersunk Pot Magnets:

This rectangular pot magnet is a neodymium magnet encased inside a chrome plated steel channel. The steel channel also protects the magnet from being damaged during day to day use. This magnet measures 60mm in length, 13.5mm wide, and 5mm in height with two countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Perfect for mounting, home improvement, DIY projects such as a tool holder. A popular use for these magnets is as cabinet door or shower door catchers.

Product Code L L1 W H D1 D2 Weight Pull Force
AMFYPSNI10 10mm 5mm 13.5mm 5mm 3.3mm 6.5mm 4.5g 4kg
AMFYPSNI20 20mm 10mm 13.5mm 5mm 3.3mm 6.5mm 9.2g 8kg
AMFYPSNI40 40mm 30mm 13.5mm 5mm 3.3mm 6.5mm 18.4g 17kg
AMFYPSNI60 60mm 50mm 13.5mm 5mm 3.3mm 6.5mm 27.9g 30kg
AMFYPSNI80 80mm 70mm 13.5mm 5mm 3.3mm 6.5mm 37.8g 33kg

Neodymium Rectangular Pot - Countersunk 60mm x 13.5mm x 5mm (AMFYPSNi60)
