Neodymium Ring - 6mm x 2.42mm x 6mm
Product code: 93505
Prices are VAT Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

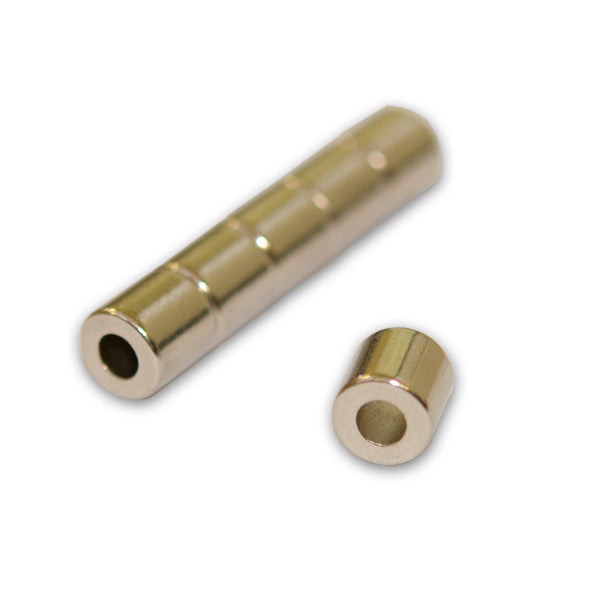

This small rare earth ring magnet has an outside diameter of 6mm, an inside diameter of 2.42mm and a thickness of 6mm. It has a pull force of 970 grams. It is identified by the AMF magnet part number 93505.
Uses for our Rare Earth ring magnets:
Magnets are common inclusions in modern technologies and valued for their consistent performance, low maintenance requirements and long-term reliability. Although integrated into products as components, magnets themselves have no moving parts, making these products simple and reliable in their operation and in many cases able to perform without the need for external power sources. Ring Magnets are used to provide long-term solutions for adhesion or fastening problems in an inconspicuous, cost-effective, non-invasive and reliable way. Magnetic hold is fast, infinitely repeatable and easy to use, adding to the benefits of magnetic attraction or, in some situations, magnetic repulsion. These benefits are used in many large-scale industrial processes and are just as easily employed in your home, studio or workshop. Customers find Ring magnets provide handy solutions for their creative or problematic day-to-day needs.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
